| CAC® COR-LOK® core adapters are the perfect answer for running larger cores than your current set-up can handle. These sleeve-based core adapters are effective with all air shafts and thru shafts. Set screw to split bushing locking ensures easy, fast and secure locking to your existing air shaft. The split bushing design will not mar or damage your air shafts. No modifications to your existing set-ups are required. Change-over for different size cores can complete in less than 10 minutes with CAC's slide-on design. |

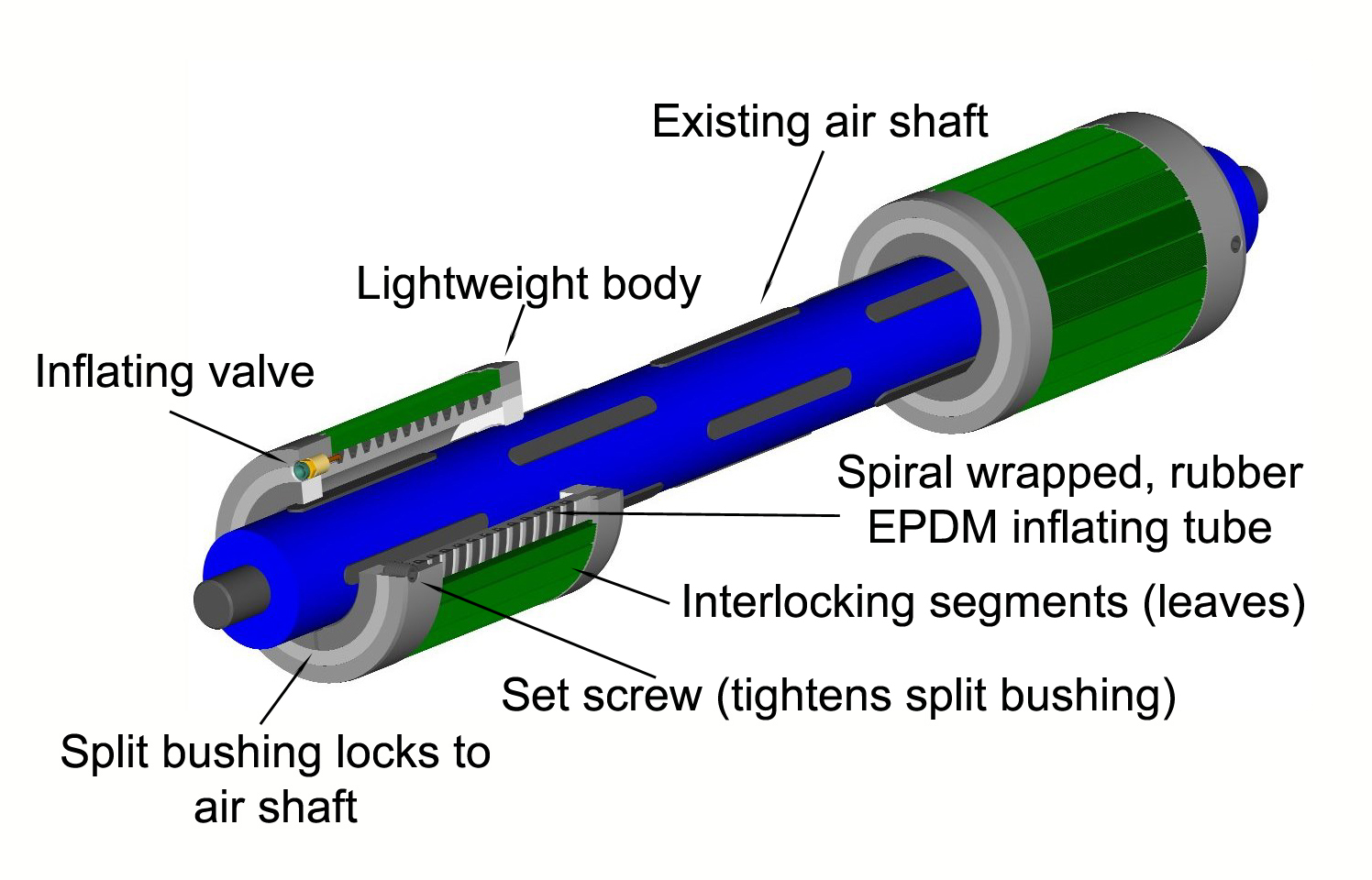

| Inside CAC's COR-LOK® core adapters | |
 | |
 |
 |

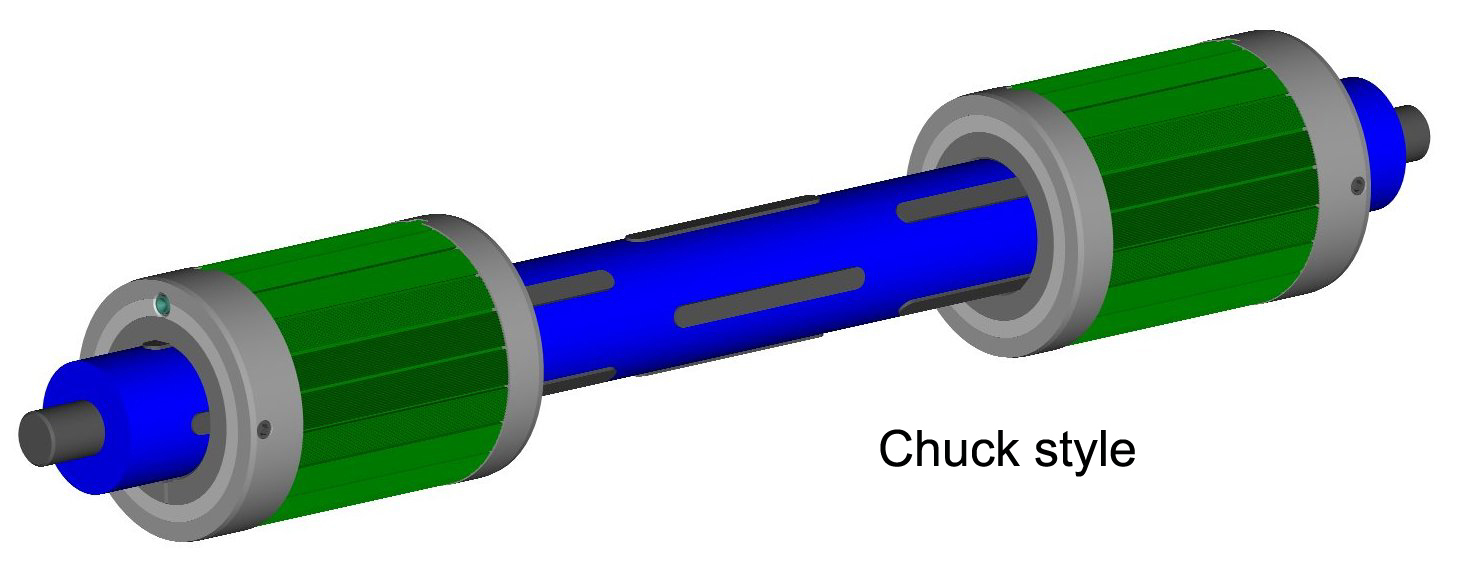

| Core adapter (chuck style) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Deflated diameter |
Inflated diameter |
Bore range | Expanding length |
Overall length |
End Cap plain end |
End Cap valve end |
Approx. weight |
|||
| 3” | 2 15/16” | 3 3/16” | Up to 1.75” | 5” | 7.5” | 1” | 1.5” | 2 lbs. | ||
| 4” | 3 15/16” | 4 3/16” | Up to 3” | 5” | 7.5” | 1” | 1.5” | 2 1/2 lbs. | ||
| 5” | 4 15/16” | 5 3/16” | Up to 4” | 5” | 7.5” | 1” | 1.5” | 3 lbs. | ||
| 6” | 5 15/16” | 6 3/16” | Up to 4” | 6” | 8.5” | 1” | 1.5” | 12 1/2 lbs. | ||
| 6.75” | 6 11/16” | 7 7/8” | Up to 4” | 6” | 8.5” | 1” | 1.5” | 13 lbs. | ||
| 7” | 6 15/16” | 7 3/16” | Up to 5” | 6” | 8.5” | 1” | 1.5” | 13 lbs. | ||
| 8” | 7 15/16” | 8 3/16” | Up to 6” | 6” | 8.5” | 1” | 1.5” | 15 lbs. | ||
| 9” | 8 15/16” | 9 3/16” | Up to 7” | 6” | 8.5” | 1” | 1.5” | 17 1/2 lbs. | ||
| 10” | 9 15/16” | 10 3/16” | Up to 8” | 7” | 9.5” | 1” | 1.5” | 22 lbs. | ||
| 11” | 10 15/16” | 11 3/16” | Up to 9” | 7” | 9.5” | 1” | 1.5” | 25 lbs. | ||
| 12” | 11 15/16” | 12 3/16” | Up to 10” | 7” | 9.5” | 1” | 1.5” | 27 lbs. | ||

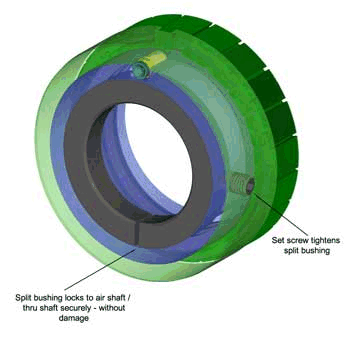

| CAC's unique split bushing locking design | |
 |
 |
 |
|

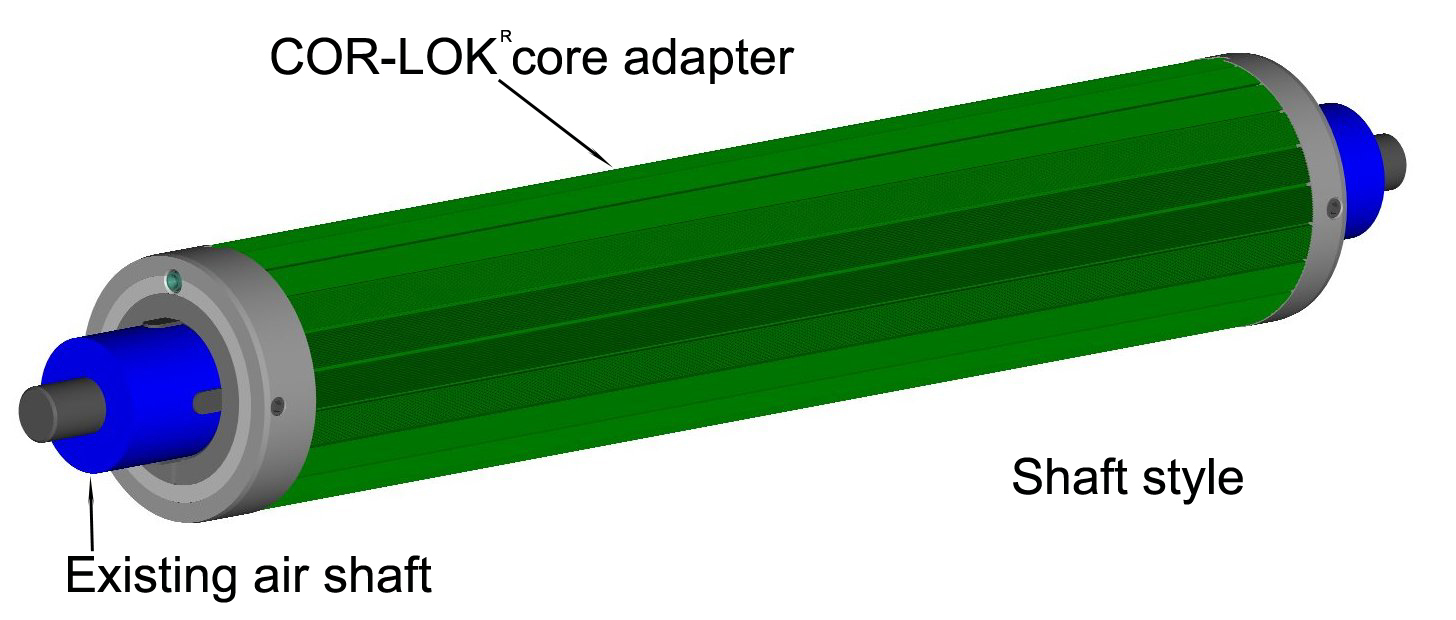

| Core adapter (shaft style) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Deflated diameter |
Inflated diameter |
Bore range | Expanding length |
Overall length |
End Cap plain end |
End Cap valve end |
||||
| 2” | 1 31/32” | 2 3/32” | Up to 1” | 3”-72” | 5”-74” | 1” | 1.5” | |||
| 3” | 2 15/16” | 3 3/16” | Up to 1.75” | 3”-120” | 5”-122” | 1” | 1.5” | |||
| 4” | 3 15/16” | 4 3/16” | Up to 3” | 3”-120” | 5”-122” | 1” | 1.5” | |||
| 5” | 4 15/16” | 5 3/16” | Up to 4” | 3”-120” | 5”-122” | 1” | 1.5” | |||
| 6” | 5 15/16” | 6 3/16” | Up to 4” | 3”-120” | 5”-122” | 1” | 1.5” | |||
| 6.75” | 6 11/16” | 7 7/8” | Up to 4” | 3”-120” | 5”-122” | 1” | 1.5” | |||
| 7” | 6 15/16” | 7 3/16” | Up to 5” | 3”-120” | 5”-122” | 1” | 1.5” | |||
| 8” | 7 15/16” | 8 3/16” | Up to 6” | 3”-120” | 5”-122” | 1” | 1.5” | |||
| 9” | 8 15/16” | 9 3/16” | Up to 7” | 3”-120” | 5”-122” | 1” | 1.5” | |||
| 10” | 9 15/16” | 10 3/16” | Up to 8” | 3”-120” | 5”-122” | 1” | 1.5” | |||
| 11” | 10 15/16” | 11 3/16” | Up to 9” | 3”-120” | 5”-122” | 1” | 1.5” | |||
| 12” | 11 15/16” | 12 3/16” | Up to 10” | 3”-120” | 5”-122” | 1” | 1.5” | |||
|
