FEATURES INCLUDE: Only 1¼ difference between core & shaft diameters. Thus a 3" core chuck has a 1¾ max. I.D. for shaft insertion. Long, maintenance-free operation since contact with the core I.D. is made with wear-resistant aluminum gripping leaves. Greater gripping pressure, which is achieved through the combination of the spiral-wound tubing and gripping leaves. Minimum down-time since the rubber tubing size is standard on all size chucks, is available from any local source and is mechanically (not vulcanized) affixed to the air valve ... requiring only minutes should replacement be required. Deflated Diameter = .0625" under nominal core size Inflated Diameter = .1875" over nominal core size

UNIQUE BENEFITS INCLUDE: Positive locking over the full core length. Greater gripping pressure. No core damage due to reaming ... less down-time for roll changes. Virtually maintenance-free operation ... aluminum locking leaves resist wear. Minimum down-time ... standardized rubber tubing available from any local source ... easily attached to air valve ... can be replaced in minutes. COR-LOK® shafts and chucks require only 90-120 psi input to fully inflate.

Lateral Adjust Air Shaft

COR-LOK® airshafts for cantilevered installations in narrow-web applications are available with the Lateral Adjust (LA) option. This system is designed for use with label presses. The LA option is built into the airshaft. An easily and safely operated hand wheel facilitates side to side +/- 4 inch adjustment while the machine is running and production continues. The system includes an adjustable core stop flange. The airshaft can be inflated with an air gun or through a toggle valve.

Click here for information our new Lateral Adjust Option Allows Air Shaft Adjustment on the Fly

Click Here to Download literature in PDF format

COR-LOK® AIR SHAFTS WITH SELF-CONTAINED 3-WAY INFLATING VALVE Self-contained valve allows for operator freedom from remote air supplies. Typical application - narrow width cantilevered design for use on label and business forms presses such as Mark Andy, Webtron, Schriber and all narrow width cantilevered machines.

Toggle Valve COR-LOK® Air Shaft

New On Shaft Inflation Toggle Valve Air Shaft Makes Roll Changes More Efficient

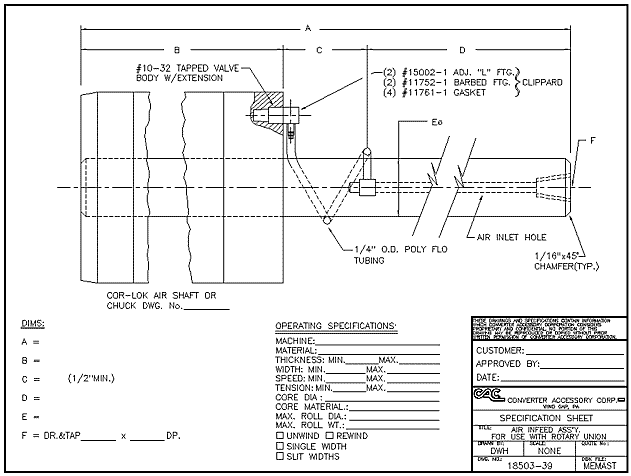

18503-34 CANTILEVERED COR-LOK® AIR SHAFT W/TOGGLE TYPE INFLATING VALVE   18503-35 CANT. COR-LOK® AIR SHAFT WITH TOGGLE TYPE INFLATING VALVE & TURNED JOURNAL   18503-39 AIR INFEED ASS'Y FOR USE WITH ROTARY UNION

MECHANICAL CHUCKS SELF-CENTERING LOAD SENSITIVE - THE GREATER THE LOAD, THE GREATER THE GRIPPING When making a decision about the core support system best suited for your application, keep in mind the simplicity of design of these chucks which assures RELIABLE OPERATION and ECONOMY. Unlike the core cones, the chucks are supplied with the same split bushing design used in our COR-LOK® Air Chucks and Shafts, preventing possible damage to the thru shaft. Ease of installation provides another reason for choosing this solution to core support problems. Simply slip the chuck onto the thru shaft, clamp split bushing to shaft with the set screws provided, load the core and you're ready to run.

3" and 6" Mechanical Chucks & Shafts

18503-78 2" COR-LOK® MECHANICAL CORE CHUCK W/1" THRU BORE 18503-18 3" COR-LOK® MECHANICAL CORE CHUCK 18503-36 3" COR-LOK® MECHANICAL CORE CHUCK W/3" OVERALL LENGTH 18503-65 4" COR-LOK® MECHANICAL CORE CHUCK W/4 1/2" OVERALL LENGTH 18503-43 6" COR-LOK® MECHANICAL CORE CHUCK
