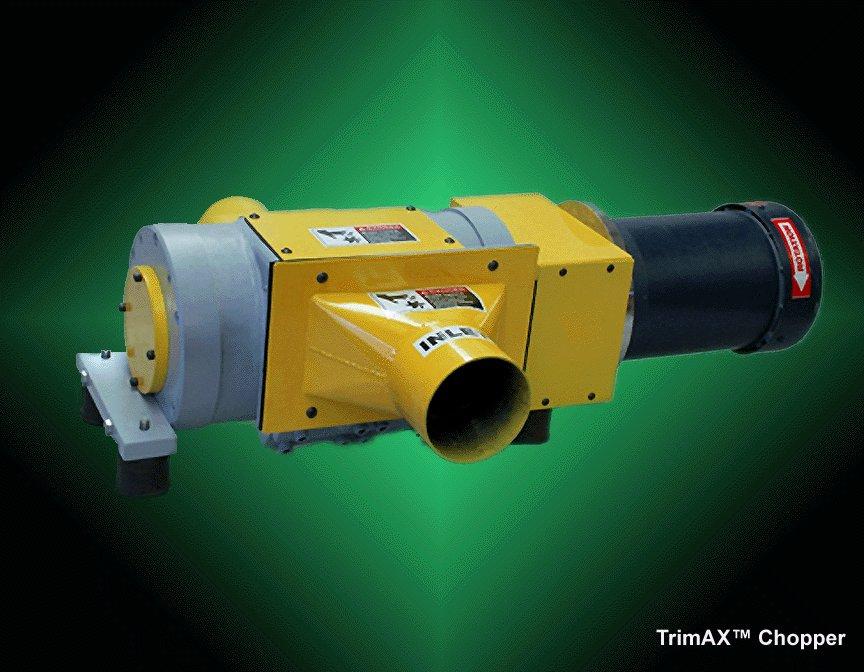

Trim-AX™ Heavy Duty Dual Bladed Chopper
The Trim-AX™ is the best performing inline cutter
on the market today.
The Trim-AX™ is a two bladed unit capable of 3,450 cuts per minute with a 1,725 rpm motor. The system is exceptionally stable with a dual bearing support and heavy duty construction. Rotating blades are easily changed and are readily available from CAC.
Thanks to an advanced design and superb materials, the precision Trim-AX™ is designed to handle materials ranging from heavy carpet to light, 1/2 mil thick materials, including paperboard, paper, nonwovens, PE, and nylon. The Trim-AX™ works smoothly with CAC's family of FOX TrimAway™ trim removal systems as well as to enhance the operation of most venturi air conveying waste removal systems.
Using the Trim-AX™ allows an air conveyor system to work over longer distances. In addition using the Trim-AX™ makes waste handling more efficient and chopped trim takes less space in collection bins.
Unique design
Production engineers who work with trim equipment want a better cutter that
gives longer, more efficient performance. Check these Trim-AX™ features:
- Two bladed unit capable of 3,450 cuts per minute with a 1,725 rpm motor.
- Variable speed control.
- Exceptionally stable and quiet with a dual bearing support and heavy duty construction.
- Rotating blades are easily changed and are readily available from CAC.
- Designed to work smoothly with CAC’s family of FOX® TrimAway® trim removal systems.
- Can also easily be integrated to enhance operation of most venturi air conveying waste removal systems.
- Can allow an air conveyor system to work over longer distances, over 200 feet with a FOX® system.
- High-efficiency cutting reduces the size of the material handling
fan needed.
- Makes waste handling more efficient and chopped trim takes less space in collection bins.
- Suited for converters that want move trim longer distances, have limited storage space, or want size reduced trim for reprocessing efficiency.
- Heavy duty, well designed unit that is built to last.
Click here to download the Chopper literature
Click here to view the news release on the Trim-AX™ Chopper
| Click filename to view specification
sheets |
| Filename |
Description |
| 18503-84 |
CAC Trim-AX™ Chopper | |
|
 |
| Check out our other Pneumatic Conveying Systems solutions |
|
Backed by CAC's over 30 years of experience designing and manufacturing converting equipment. |
