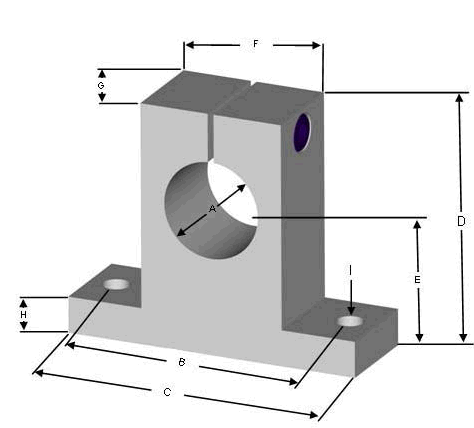

Standard Mounting Block |
 |
| A | B | C | D | E | F | G | H | I |
| 0.75 | 2.00 | 2.75 | 2.125 | 1.25 | 1.00 | 0.75 | 0.313 | #10 |
| 1.00 | 2.50 | 3.25 | 2.563 | 1.50 | 1.375 | 1.00 | 0.375 | 0.25 |
| 1.25 | 3.00 | 4.00 | 3.00 | 1.75 | 1.75 | 1.125 | 0.438 | 0.313 |
| 1.50 | 3.50 | 4.75 | 3.50 | 2.00 | 2.00 | 1.25 | 0.50 | 0.313 |
| 2.00 | 4.50 | 6.00 | 4.50 | 2.50 | 2.625 | 1.50 | 0.625 | 0.375 |
| All dimensions in inches | ||||||||
