Converter Accessory: Shaft Support-ShaftLok™ Safety Shaft Holder

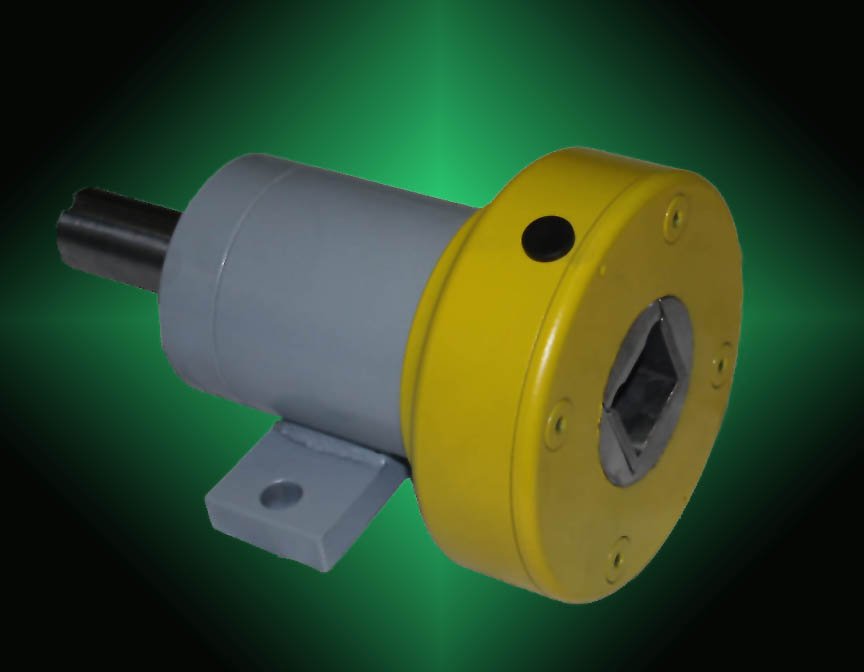

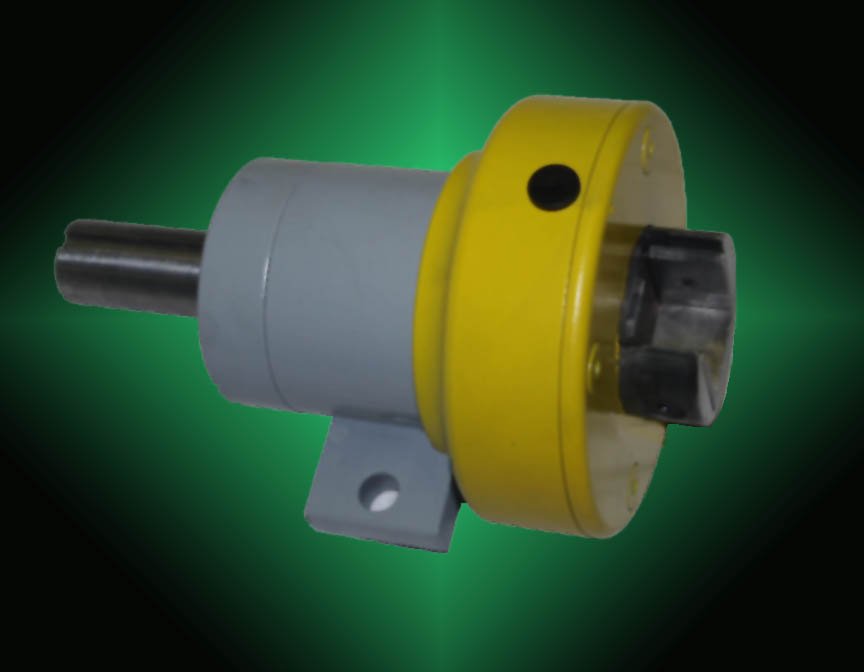

Standard Duty ShaftLok™ Safety Chucks

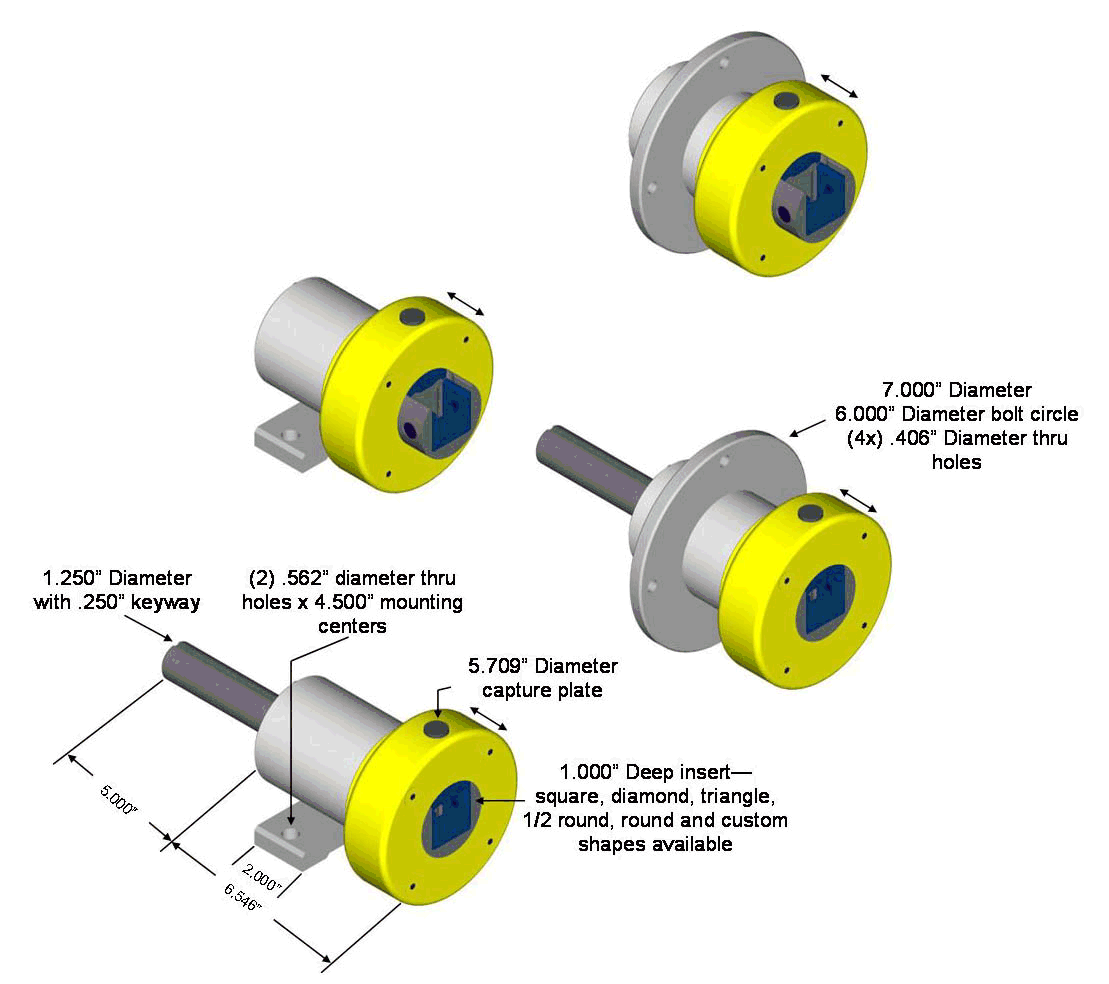

Design Parameters:

Capacity: 500 pounds each, 1000 pounds/pair
Insert size: .750” - 1.250” square
Approximate weight: 22 pounds each
Capture plate travel: 1.000”

View a safety shaft holder in operation
Download literature in PDF format
Check out the news on CAC's pinch point free shaft locking systems

Unlike conventional safety chucks, the unique design of the CAC ShaftLok™ Safety Chuck provides a no pinch point shaft locking device that offers a level of worker safety unequalled by any other shaft locking system.

Click filename to view Specification Sheets
Filename	Description
18503-226	ShaftLok™ Standard Duty Safety Chuck foot mount - 1000 lb roll weight
18503-227	ShaftLok™ Standard Duty Safety Chuck flange mount- 1000 lb roll weight

ShaftLok™ Safety Chuck Models and options available:

Standard Duty ShaftLok™ Safety Chuck for roll weights up to 1,000 lbs.

ShaftLok™ Safety Chuck Unwind Module

Medium Duty ShaftLok™ Safety Chuck for roll weights up to 3,000 lbs.

ShaftLok™ Safety Chuck Module with Skew Adjust

Heavy Duty ShaftLok™ Safety Chuck for roll weights up to 10,000 lbs.

ShaftLok™ Safety Chuck Module with Lateral Adjustment

ShaftLok™ Safety Chuck Module with
Skew and Lateral Adjustment

ShaftLok™ Insert Shapes Available
