Mounting Bracket with Angular Adjustment for Adjusta-Pull Nip Type Anti-Wrinkle Device

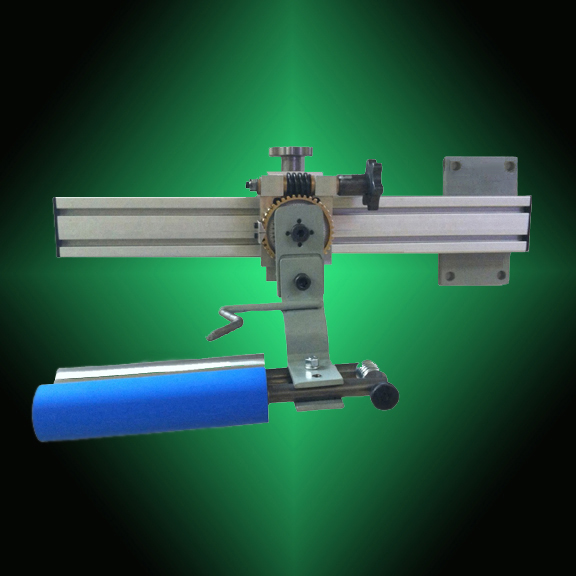

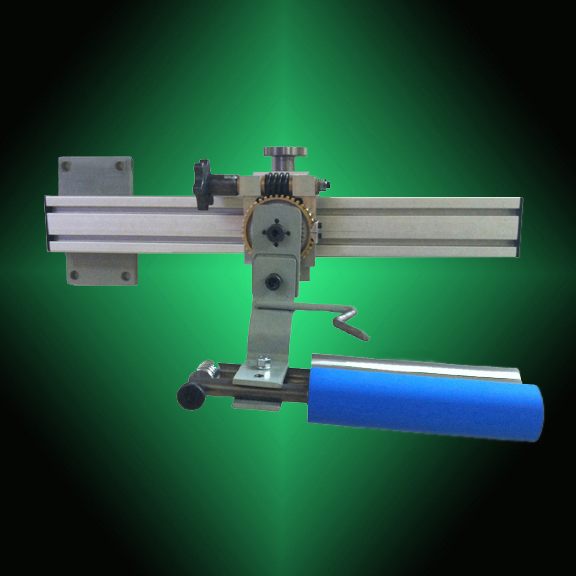

CAC's NEW Adjusta-Pull mounting bracket, left and right side, each includes:
  • Cantilevered mount, extruded aluminum slide rail
  • Slide mount for easy web width adjustment
  • Manual angular adjustment with angle indicator
  • Purchase with your next order of Adjusta-Pull nip type anti wrinkle device or purchase just the mounting brackets and conveniently add to your existing Adjusta-Pull assemblies
  • Easy to mount/re-position
  • Heavy duty construction
  • Backed by CAC's over 30 years of experience designing and manufacturing equipment for the converting industry

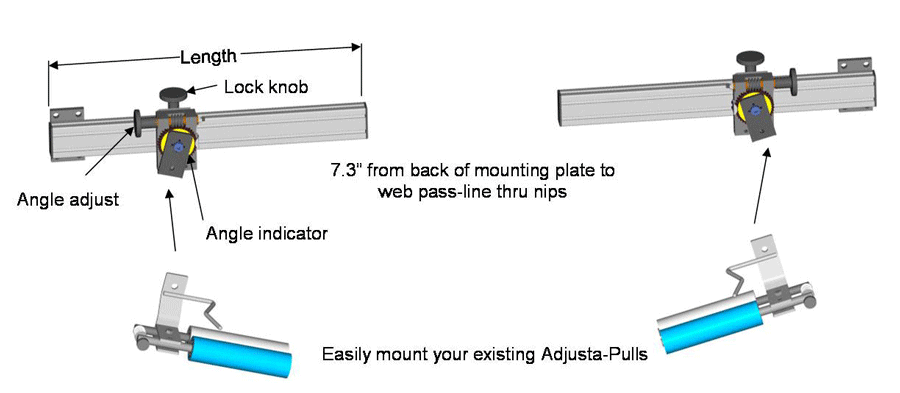

Adjusta-Pull Mounting Bracket

Adjusta-Pull mounting bracket

Part Number Model Number  Length   Adjustment  Mounting Approximate Weight(pounds) Download PDF
or Autocad file
50959-26 APB12 16" 12" (4) .562" Clearance holes with 3" x 6" mounting pattern(each side) 12 Click Here
50959-28 APB18 22" 18" (4) .562" Clearance holes with 3" x 6" mounting pattern(each side) 13.2 Click Here
50959-30 APB24 28" 24" (4) .562" Clearance holes with 3" x 6" mounting pattern(each side) 14.5 Click Here
50959-31 APB30 34" 30" (4) .562" Clearance holes with 3" x 6" mounting pattern(each side) 15.5 Click Here
50959-33 APBSR Web width + 24.625" Web width as required (4) .562" Clearance holes with 3" x 6" mounting pattern(each side) 17.5 + .2 per inch of rail Click Here

When each of the nip assemblies are angled away from each other, each of the webs edges will try to maintain a 90 degree entry angle to each nip assembly. This action effectively and aggressively pulls each web edge to spread your web and remove wrinkles. Increasing the angular displacement of each nip assembly increases the web spreading action. Adjusta-Pull operation
