Adjusta-Pull Nip Type Spreaders

Note:
STD. components will be used unless otherwise specified.

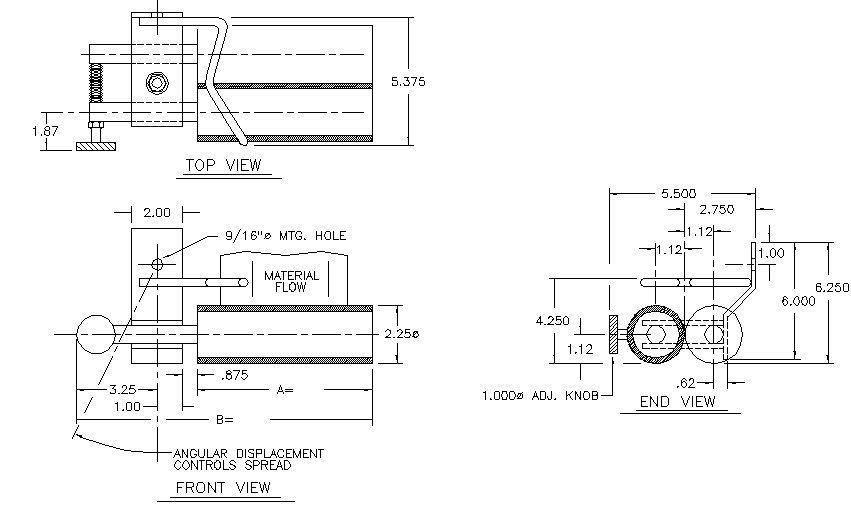

DIMS (All Dimensions in inches)

OPERATING SPECS:

A = (6" or 9" available)

B = (dimension A + 4.75")

NOTES:
1) LEFT HAND ADJUSTA-PULL SHOWN

2) RIGHT HAND OPPOSITE OF SHOWN

Machine:
Material:

Thickness:	Min.	Max.
Width:	Min.	Max.

Speed:	Min.FPM	Max.FPM
Tension:	Min.PLI	Max.PLI

Core Size:
Max. Roll Dia.:
Max. Roll weight:

Converter
Accessory Proprietary Statement

Converter Accessory Corp. Wind Gap PA Specification Sheet
Adjusta-Pull Nip Type Spreaders
Drawn By: DWH	Scale: NONE	DWG. NO.: 18503-66

Company Name: (required)

NOTE: IT IS NOT NECESSARY TO COMPLETE THE FIELDS BELOW IF YOU HAVE ALREADY SUBMITTED A SPECIFICATION SHEET FORM DURING THE CURRENT SESSION.

Your Name:

Address:

City:

State/Prov: Zip:

Country:

Phone: -

Fax: -

E-mail:

Notes:

ADJUSTA-PULL NIP TYPE SPREADERS
Filename	File Format
18503-66.dwg	Autocad version 14
18503-66.dwg	Autocad version 2002
18503-66.pdf	PDF file
18503-66.dxf	For Applications other than AutoCAD
