Wrinkle Removal Systems
Why WrinkleSTOP®?
  • Linear face = zero web destortion
  • Smooth surface = zero web marking or scratching
  • Adjustablity = web spreading where wrinkles are the worst
  • Aggressive wrinkle removal = less waste for fast return on investment

Why use any other type of anti-wrinkle roll?

Spreader Rolls Support Improved Sustainability of Web Produced Products

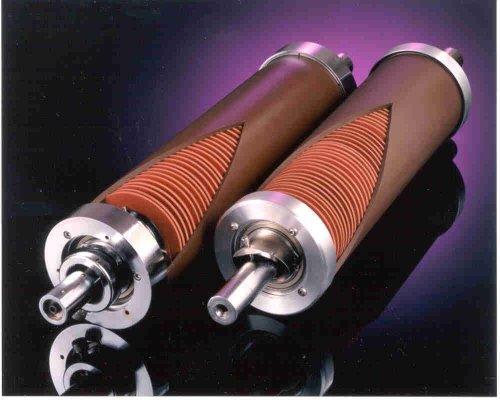

CAC WrinkleSTOP anti wrinkle roll cut-away image
WrinkleSTOP® Roll /
Featuring Zero-Web Distortion


Technical Report:
Webs without wrinkles

"Only a few degrees short of perfection, expanding surface spreader rolls shine with thin gauge webs."

An impartial examination and evaluation of the performance of all wrinkle-removing systems came in a definite study published in a bound edition, edited by J. K. Good, of the Fourth International Conference on Web Handling, held June 1-4, 1997, at the Web Handling Research Center, Oklahoma State University, Stillwater, OK. The specific study, "Testing and Analysis of Web Spreading and Anti-Wrinkle Devices" by R. P. Swanson, 3M Company, (pp414-428), found "the expanding surface rollers did not wrinkle under any test conditions. The regime 1 (one) performance was excellent. This roller is an aggressive web-spreading device. An expanding surface roller would be insensitive to wrinkles at low, medium, and high tension. This roller is an excellent, high drag, web spreading and anti wrinkle device."(p421). Of the ten types of systems tested, only the expanding surface spreader rolls and the "curved axis" or bowed roll systems were described as "excellent" systems according to the study.

Features:

  • Aggressive wrinkle removal with zero-web distortion.
  • Bowless, smooth roll does not mark or distort the web.
  • Independent edge-to-edge adjustability while the web is in motion.
  • No special tools needed to adjust degree of spreading action.
  • Works well in vacuum chambers and can be used to run in high-heat applications.
  • Easy installation.
  • Accepts and delivers web at any angle.
  • Surface designed for high traction.
  • Works well with extremely short lead-in and lead-out web distances.
  • Drive sheave available: perfect for light webs.
  • Available in various diameters and widths.
  • Versatile - can be designed to accommodate many applications.
  • Static conductive roll face available.

WrinkleSTOP® No-Bow Anti-Wrinkle Roll
WrinkleSTOP® No-Bow Anti-Wrinkle Roll

Traditional WrinkleSTOP® Anti-Wrinkle Roll
Traditional WrinkleSTOP® Anti-Wrinkle Roll

Benefits:

  • Won't mark, stretch, introduce wrinkles into the web, or send non-level web into other level sensitive devices such as moisture or weight meters.
  • Degree of expansion can be quickly altered at each end cap, allowing correction of distortion produced at earlier points in the line.
  • Can be designed to work in corrosive atmosphere applications, as well as food and pharmaceutical applications.
  • Backed by over 30 years of experience designing and manufacturing equipment for the converting industry.

Traditional WrinkleSTOP® cut out to show internal design

Traditional WrinkleSTOP® cut out to show internal design


Results:

  • Quick ROI.
  • No stressed or torn web center areas and altered centerline travel.
  • Provides total control of the spreading action to match your requirements.
  • Productive, highly reliable, and, cost-effective performance.
  • Directly replaces existing spreader rolls or idlers.
  • Saves space in your plant line.
  • Improves web runs.
  • Allows replacement of existing limited-angle roll arrangements with fewer rolls.

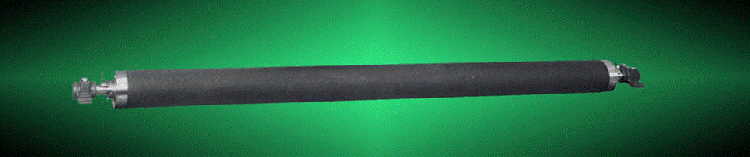

CAC WrinkleSTOP Anti Wrinkle Roll



WrinkleSTOP® and Multi-Adjust® WrinkleSTOP® work equally well on all types of materials:

·Cloth ·Paper ·Foil ·Film ·Plastics ·Nonwovens

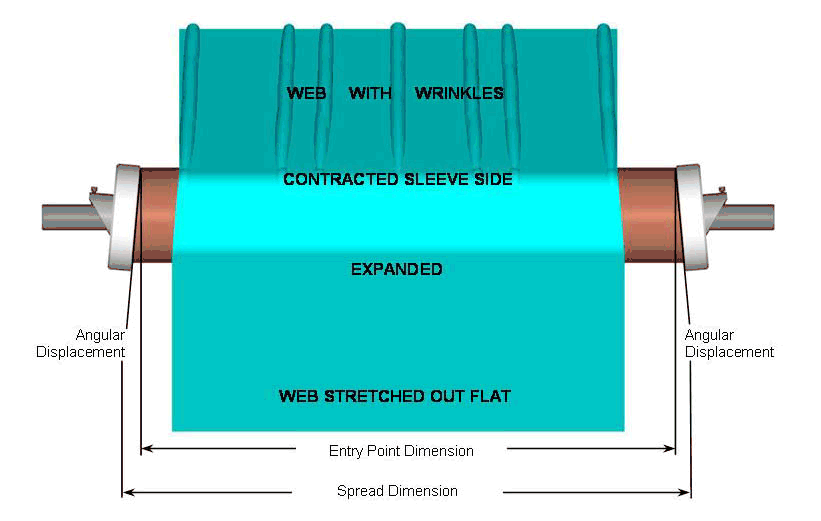

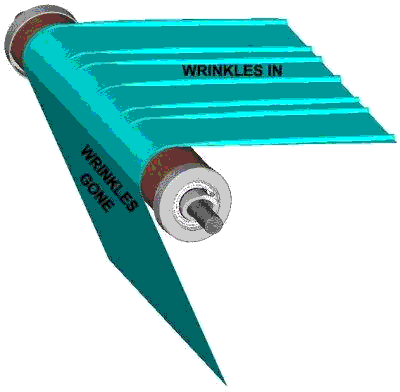

How the WrinkleSTOP® works How the WrinkleSTOP® works
Wrap Angle
% End Cap Displacement
% Spread
90°
0
0
50
25
100
50
120° - 180°
0
0
50
50
100
100


Inside the WrinkleSTOP®

Surface remains smooth and linear (no-bow)



Cut away image of the WrinkleSTOP®
  Cut away image of the WrinkleSTOP®

Adjustments:

  • Are made from each end independently.
  • Can be made while web is in motion.
  • Are made with standard tools.
  • Are set from 0-100% spreading.

Wrinkle free web
WrinkleSTOP® in operation


U. S. Patent #4,862,565 T. M. Reg
U. S. Pat & T. M. OFF
WS102C-05WrinkleSTOP® Spreader Roll End Cap Design
18503-295.5 WrinkleSTOP® Anti-Wrinkle Roll
18503-303.25 WrinkleSTOP® Anti-Wrinkle Roll
18503-443.25 WrinkleSTOP® Anti-Wrinkle Roll Cantilevered Design
