Air Shafts & Chucks

The Field-Proven Concept in Core Locking

Use COR-LOK® air shafts and chucks for positive locking without core damage and virtually maintenance-free operation. These unique air shafts and chucks employ a totally new inflating and gripping principle for greater gripping pressure and improved core contact.

The COR-LOK® design utilizes a single, small diameter tube spirally wound around the shaft body. When inflated, the tubing provides even, controlled expansion for the aluminum leaves and full surface engagement with the core I.D. - locking it securely to the shaft.

COR-LOK® air shafts are available in 1" to 18" diameters. Special, fractional and metric core sizes available.

Call for more specifications.

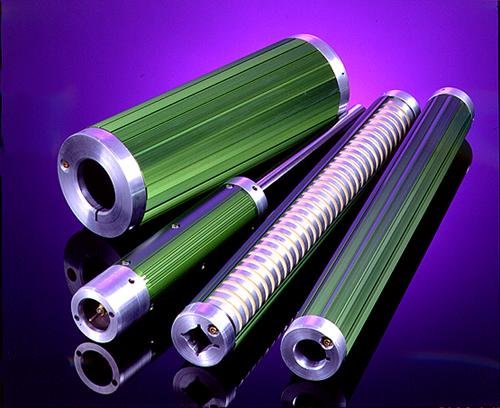

COR-LOK® air shaft and chucks
Air chuck specifications
COR-LOK® air shaft and chuck
3" COR-LOK® air chucks/shafts
6” COR-LOK® air shaft
6" COR-LOK® air shaft
internal view of COR-LOK® air shaft and chuck
Internal view


COR-LOK® air shaft and chucks
Air shafts and Chucks



Click here to view the Adjusta-Pulls in operation


Need more Information?
Click filename to view Specification Sheets
Filename  Description
18503-37 COR-LOK® Air Shaft with thru bore
18503-38 COR-LOK® Air Shaft with Journals or Thru Shaft
18503-86 COR-LOK® Shaft for Cantilevered Mounting
18503-39 Cantilevered COR-LOK® Air Shaft w/ Rotary Union

Features:

  • Minimum down-time.
  • Very low maintenance.
  • Lightweight - saves employee fatigue.
  • Easy to slide in and out of cores for fast operation.
  • High torque output to ensure your cores stay locked in place.
  • Zero core damage with use of interlocking segment (leaf) design.
  • Rubber tubing size is standard on all size chucks.
  • Positive locking over the full core length.
  • Greater gripping pressure.
  • No core damage due to reaming ... less down-time for roll changes.
  • Minimum down-time ... standardized rubber tubing available from any local
    source ...easily attached to air valve ... can be replaced in minutes.
  • 70 PSI - 120 PSI operating range.
  • Available in aluminum (standard), steel, stainless steel and carbon fiber construction
  • Air shafts and chucks are available with thru bores (standard), thru shafts and journals.
  • Standard and custom configurations to suit your needs.
  • Easily combined with CAC's shaft holders and safety chucks for complete unwind station upgrades.
  • Made in the USA
