Heated Rollers

Made in the USA



Multi-Heater Cartridge Electrically Heated Roller

Supplies clean electric heat, no oil, water or steam

CAC's multi-heater cartridge electrically heated roller offers unequalled accuracy and controllability. This heated roll is designed with multiple heater cartridges, powered by a slip ring. The heating radius of each cartridge is overlapped, so heat delivered by your web is controlled within the tolerances your application requires.

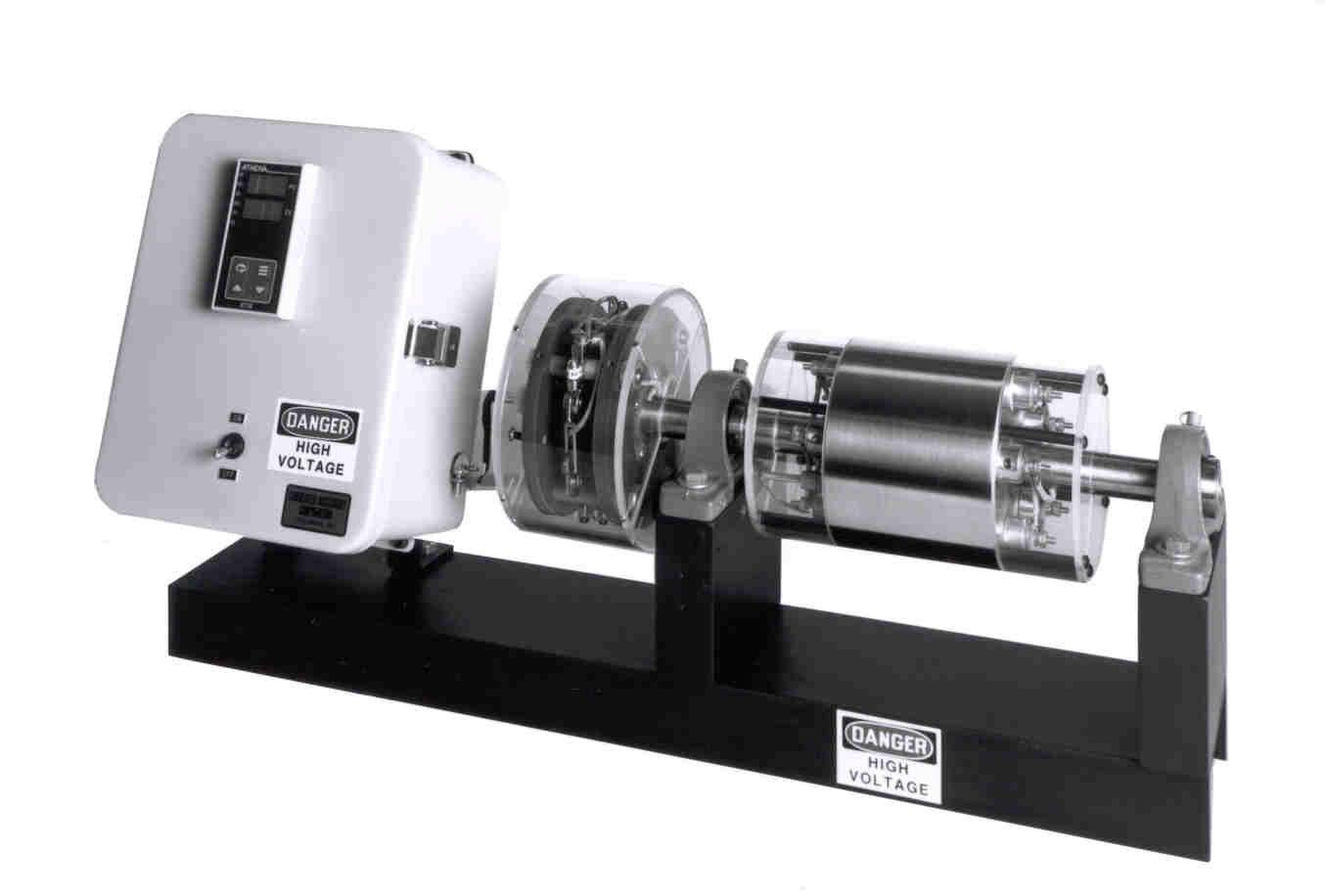

Multi-Heater Cartridge Electrically Heated Roller Cutaway and Internal View
Electrically Heated Roller Electrically Heated Roller
quoteform_abr

    • or view all items in stock here

      Proceed as Guest or Register and Log In Here

    •     Other State (Click if region is outside the USA)

    • Required *

    • Select specs

    • Min:
      Web Tension in Pounds Per Linear Inch:

      Please Verify that you're human:



Features and Benefits:
  • Expanding type cartridge heaters for maximum heat transfer.
  • Easy replacement of heaters.
  • Thermocouple is end mounted in roll body and rotates with roll
    - preventing surface contact or wear.
  • Separate heater and thermocouple slip ring assemblies.
  • Power slip rings consist of heavy duty replaceable brushes and rings.
  • J or K type thermocouples available.
  • Signal slip rings utilize mercury wetted contacts.
  • Location of heaters insures even distribution of heat at roll surface.
  • Manual or automatic controls available.
  • Roll surface finish available in a variety of finishes.
  • Cantilevered design for narrow width materials.



Electrically Heated Roller
Electrically Heated Roller
Electrically Heated Roller-Internal Wiring
Electrically Heated Roller - Internal Wiring
Heated Rollers

Click filename to view Specification Sheets
Filename  Description
18503-19 Cantilevered Electrically Heated Roller Assembly
18503-20 Electrically Heated Roller


Tech tip: Idler Rollers




Check out our other Rollers and Roller Assemblies


Idler Rolls Rotational Type Dancer Roll Assembly


Nip Roll and S-Wrap Feed Roll Assembly Multi-Heater Cartridge Electrically Heated Rollers


Machining Patterns and Coatings Standard Mounting Block


Idler Rolls and Mounting Blocks in Stock



Click Here to Request Additional Information


Backed by CAC's over 50 years of experience designing and manufacturing converting equipment
