Adjusta-Pull Mounting Brackets

Made in the USA


Mounting Bracket with Angular Adjustment

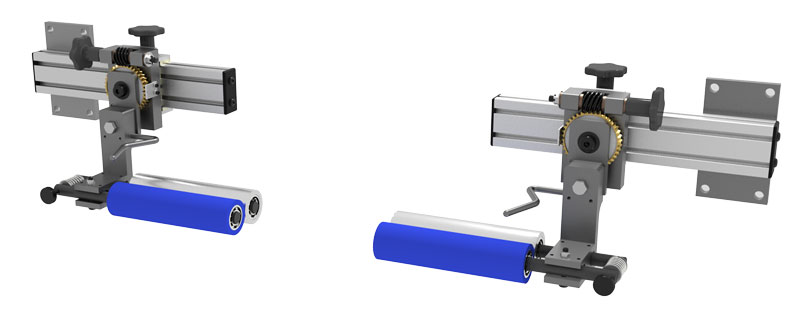

shown with Adjusta-Pull-SL2 Nip Type Anti-Wrinkle System



CAC's Adjusta-Pull mounting bracket, left and right side, each includes:
  • Cantilevered mount, extruded aluminum slide rail
  • Slide mount for easy web width adjustment
  • Manual angular adjustment with angle indicator
  • Purchase with your next order of Adjusta-Pull anti-wrinkle system or purchase just the mounting brackets and conveniently add to your existing Adjusta-Pull assemblies
  • Easy to mount/re-position
  • Heavy duty construction
  • Backed by CAC's over 45 years of experience designing and manufacturing equipment for the converting industry
  • Brackets shown with optional Adjusta-Pull nip type anti-wrinkle system mounted - sold separately - click here for details!

Click filename to view Specification Sheets
Filename  Description
18503-236 Model APB24 Adjusta-Pull Mounting Bracket
18503-237 Model APB12 Adjusta-Pull Mounting Bracket
18503-238 Model APB18 Adjusta-Pull Mounting Bracket
18503-239 Model APB30 Adjusta-Pull Mounting Bracket
18503-240 Model APBSR Adjusta-Pull Mounting Bracket

Part Number Model Number  Length   Adjustment  Mounting Approximate Weight(pounds) Download PDF
or Autocad file
Availablility
50959-26 APB12 16" 12" (4) .562" Clearance holes with 3" x 6" mounting pattern(each side) 12 Click Here In Stock - Order Today
50959-28 APB18 22" 18" (4) .562" Clearance holes with 3" x 6" mounting pattern(each side) 13.2 Click Here In Stock - Order Today
50959-30 APB24 28" 24" (4) .562" Clearance holes with 3" x 6" mounting pattern(each side) 14.5 Click Here In Stock - Order Today
50959-31 APB30 34" 30" (4) .562" Clearance holes with 3" x 6" mounting pattern(each side) 15.5 Click Here In Stock - Order Today
50959-33 APBSR Web width + 24.625" Web width as required (4) .562" Clearance holes with 3" x 6" mounting pattern(each side) 17.5 + .2 per inch of rail Click Here In Stock - Order Today

CAC Converter Accessory Corporation
RETURN TO TOP

Adjusta-Pull Web Spreading Concept
When each of the nip assemblies are angled away from each other, each of the webs edges will try to maintain a 90 degree entry angle to each nip assembly. This action effectively and aggressively pulls each web edge to spread your web and remove wrinkles. Increasing the angular displacement of each nip assembly increases the web spreading action.
