CAC Products >>> Shafts and Chucks >>> COR-LOK® Core Adapters

Tech tip: Matrix Removal


COR-LOK LOGO /

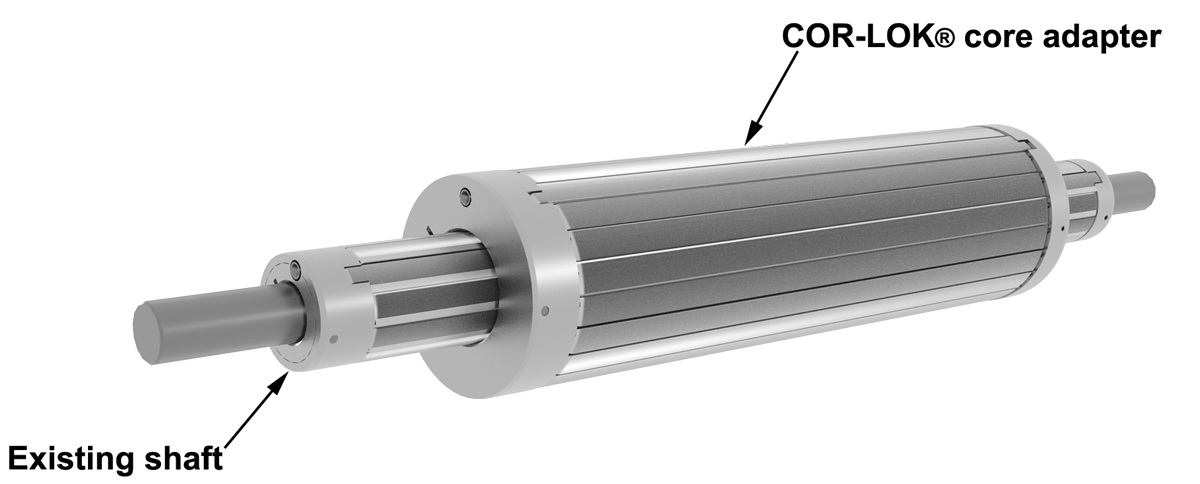

COR-LOK® Core Adapters

CAC® COR-LOK® core adapters are the perfect answer for running larger cores than your current set-up can handle. These sleeve-based core adapters are effective with all air shafts and thru shafts. Set screw to split bushing locking ensures easy, fast and secure locking to your existing air shaft. The split bushing design will not mar or damage your air shafts. No modifications to your existing set-ups are required. Change-over for different size cores can complete in less than 10 minutes with CAC's slide-on design.




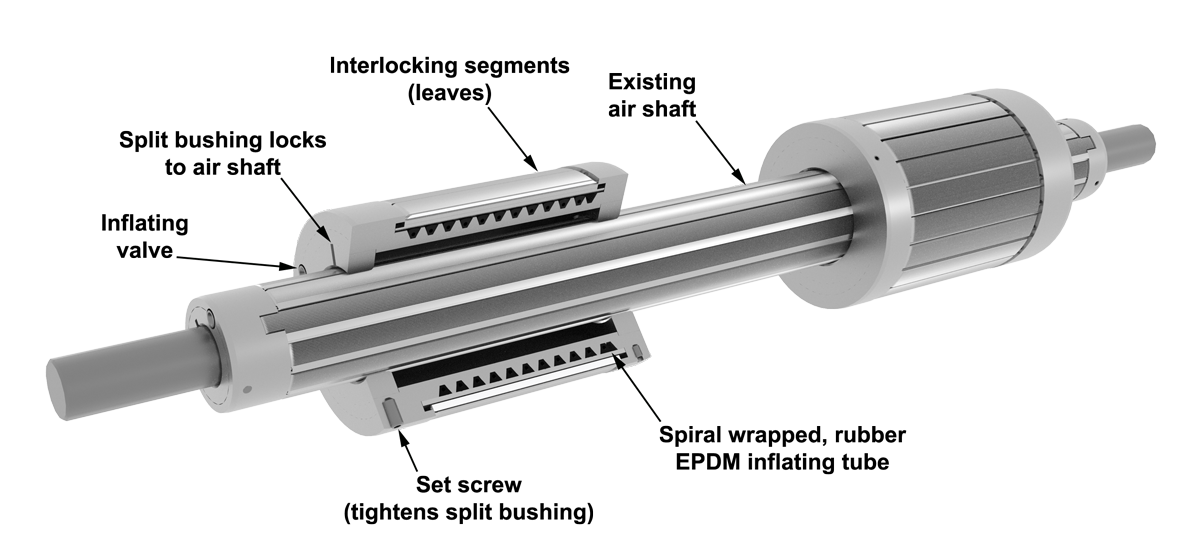

Inside CAC's COR-LOK® core adapters
COR-LOK® core adapter
COR-LOK® core adapter COR-LOK® core adapter

Core adapter (chuck style)
  Deflated
diameter
Inflated
diameter
Bore range Expanding
length
Overall
length
End Cap
plain end
End Cap
valve end
Approx.
weight
3” 2-15/16” *3-1/8” Up to 1.75” 5” 7.5” 1” 1.5” 2 lbs.
4” 3-15/16” 4-1/8” Up to 2.5” 5” 7.5” 1” 1.5” 2 1/2 lbs.
5” 4-15/16” 5-3/16” Up to 3” 5” 7.5” 1” 1.5” 3 lbs.
6” 5-15/16” 6-3/16” Up to 4” 6” 8.5” 1” 1.5” 12 1/2 lbs.
6 3/4” 6-11/16” 6-7/8” Up to 4” 6” 8.5” 1” 1.5” 13 lbs.
7” 6-15/16” 7-3/16” Up to 5” 6” 8.5” 1” 1.5” 13 lbs.
8” 7-15/16” 8-3/16” Up to 6” 6” 8.5” 1” 1.5” 15 lbs.
9” 8-15/16” 9-3/16” Up to 7” 6” 8.5” 1” 1.5” 17 1/2 lbs.
10” 9-15/16” 10-3/16” Up to 8” 7” 9.5” 1” 1.5” 22 lbs.
11” 10-15/16” 11-3/16” Up to 9” 7” 9.5” 1” 1.5” 25 lbs.
12” 11-15/16” 12-3/16” Up to 10” 7” 9.5” 1” 1.5” 27 lbs.
Note: Thru bores machined .010" - .015" oversized unless otherwise specified.

*3-3/16” inflated diameter is attainable with leaf and retainer design (only). Contact us for more information.




CAC's unique split bushing locking design




COR-LOK® core adapter COR-LOK® core adapter
COR-LOK® core adapter

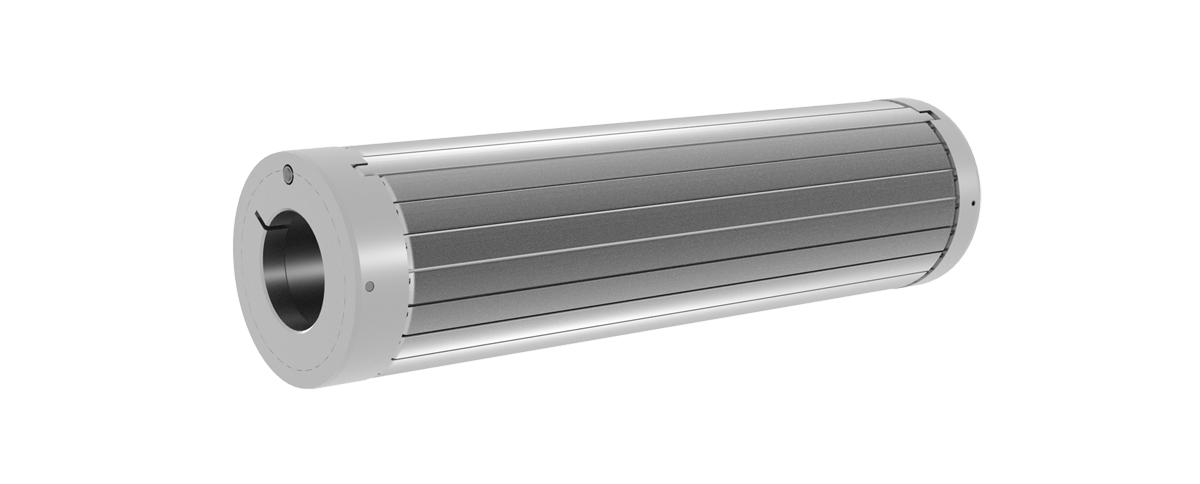

Core adapter (shaft style)
  Deflated
diameter
Inflated
diameter
Bore range Expanding
length
Overall
length
End Cap
plain end
End Cap
valve end
2” 1-31/32” 2-3/32” Up to 1” 3”-72” 5”-74” 1” 1.5”
3” 2-15/16” *3-1/8” Up to 1.75” 3”-120” 5”-122” 1” 1.5”
4” 3-15/16” 4-1/8” Up to 2.5” 3”-120” 5”-122” 1” 1.5”
5” 4-15/16” 5-3/16” Up to 3” 3”-120” 5”-122” 1” 1.5”
6” 5-15/16” 6-3/16” Up to 4” 3”-120” 5”-122” 1” 1.5”
6.75” 6-11/16” 6-7/8” Up to 4” 3”-120” 5”-122” 1” 1.5”
7” 6-15/16” 7-3/16” Up to 5” 3”-120” 5”-122” 1” 1.5”
8” 7-15/16” 8-3/16” Up to 6” 3”-120” 5”-122” 1” 1.5”
9” 8-15/16” 9-3/16” Up to 7” 3”-120” 5”-122” 1” 1.5”
10” 9-15/16” 10-3/16” Up to 8” 3”-120” 5”-122” 1” 1.5”
11” 10-15/16” 11-3/16” Up to 9” 3”-120” 5”-122” 1” 1.5”
12” 11-15/16” 12-3/16” Up to 10” 3”-120” 5”-122” 1” 1.5”
Note: Thru bores machined .010" - .015" oversized unless otherwise specified.

*3-3/16” inflated diameter is attainable with leaf and retainer design (only). Contact us for more information.


Click filename to view Specification Sheets
Filename  Description
18503-37 COR-LOK® Air Shaft with thru bore



Check out our other Core Support Systems solutions
Air shafts and chucks Aluminum core cones


Air shaft with lateral adjust Mechanical shafts and chucks


Air shaft with self contained inflating valve COR-LOK® Core Adapters


COR-LOK® end and center plugs COR-LOK® XE series pneumatic chucks


Air chuck standard dimensions Air shaft standard dimensions


Air shafts and chucks support center Air Chucks and Core Cones In Stock




See our COR-LOK® videos - click here!
