Tech tip: Expanding surface anti-wrinkle rolls types and applications.


COR-LOK LOGO /

End and Center Plugs


Designed to operate with CAC's COR-LOK™ air chucks, COR-LOK™ end plugs are the perfect answer to support material roll cores opposite the chuck supported end, in unwind and rewind applications where dual air chuck support is not required. Center plugs support wide material roll cores between air chuck and end plug core supports. CAC's end and center plugs feature the same split bushing locking mechanism as COR-LOK air chucks, ensuring concentricity and zero center shaft damage. Typical material of construction is aluminum for light-weight, easy handling. Their cone shape makes core insertion a breeze, while the flat core support land will not bias roll orientation during unwind or rewinding.

Sizes available in standard and metric for 2" to 18" cores.



Click filename to view Specification Sheets
Filename  Description
18503-351End Plug for 2 inch Cores
18503-342End Plug for 3 inch Cores
18503-349End Plug for 4 inch Cores
18503-347End Plug for 5 inch Cores
18503-343End Plug for 6 inch Cores
18503-352 Center Plug for 2 inch Cores
18503-369 Center Plug for 3 inch Cores
18503-350 Center Plug for 4 inch Cores
18503-348 Center Plug for 5 inch Cores

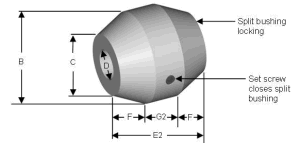

End and Center Plug Dimensions
To fit core size: A
Flange diameter
B
Support land diameter
C
Minor diameter
D
Bore
range
E1
Overall
length
E2
Overall
length
F
Taper length
G1
Support land
length
G2
Support land
length
H
Flange length
3” 3.25” 3” 2” Up to 1.75” 2.25” 3” 1” .25” 1” 1”
4” 4.25” 4” 3” Up to 3” 2.25” 3” 1” .25” 1” 1”
5” 5.25” 5” 4” Up to 4” 3” 4” 1.5” .5” 1” 1”
6” 6.25” 6” 4.5” Up to 4” 3” 4” 1.5” .5” 1” 1”
6.75” 7” 6.75” 5.25” Up to 4” 3” 4” 1.5” .5” 1” 1”
7” 7.25” 7” 5.5” Up to 5” 3” 4” 1.5” .5” 1” 1”
8” 8.25” 8” 6.5” Up to 6” 3” 4” 1.5” .5” 1” 1”
9” 9.25” 9” 7.5” Up to 7” 3” 4” 1.5” .5” 1” 1”
10” 10.25” 10” 8.5” Up to 8” 3” 4” 1.5” .5” 1” 1”
11” 11.25” 11” 9.5” Up to 9” 3” 4” 1.5” .5” 1” 1”
12” 12.25” 12” 10.5” Up to 10” 3” 4” 1.5” .5” 1” 1”



RETURN TO TOP

CAC's Lightweight Thru Shaft

Lighten your load with our lightweight thru shaft. CAC’s thru shaft is manufactured from hallowed tubular steel and offers a light weight solution with a lot of beam strength for heavy rolls of material. It is a very attractive way to provide a much lighter core support solution. Beam strength primarily is from the outside diameter, the small amount of stiffness lost with the hallowed design is well worth the benefits. We offer solid steel ends to fit your needs.

Couple our lightweight thru shaft with our core support products to achieve a complete solution. Customize your solution by using our end plug and air shaft, or ShaftLok™ safety chucks. Increase productivity and reduce employee injury with this effective, low cost option.

Contact us today so we can discuss how we can provide a solution for your specific needs.


Click filename to view Specification Sheets
Filename  Description
18503-373 Steel Thru Shaft
18503-374 Lightweight Thru Shaft
Request a Quote
