Cor-Lok® TOGGLE VALVE AIR SHAFTS

Made in the USA

CAC Products >>> Shafts and Chucks >>> Toggle Valve COR-LOK® Air Shafts


COR-LOK LOGO

COR-LOK® Air Shaft for Cantilevered Mounting with Built-in Toggle Valve Inflate/Deflate Operation

COR-LOK® toggle valve air shafts are a simple design that makes an exceptional contribution to efficiency by facilitating roll changeovers. Since the easily reached toggle valve is built right into the end of the air shaft the machine operator does not have to leave their station to access remote inflation controls or retrieve any tools. No inflating guns are required, no external inflate/deflate operators needed. This patented air shaft employs a standard rotary union for pneumatic hook-up and is specifically engineered for use in cantilevered applications. They are available in various diameters from 2" to 18".


Features and benefits:
  • Self-contained valve allows for operator freedom from remote air supplies
  • Facilitates roll changeovers
  • Available from 2" to 18" diameters
  • Typical application - narrow width cantilevered design for use on label and business forms presses such as Mark Andy, Webtron, Schriber and all narrow width cantilevered machines
  • Designed to fit your unwind or rewind stand
  • Backed by CAC's over 50 years of experience designing and manufacturing air shafts
  • Made in the USA

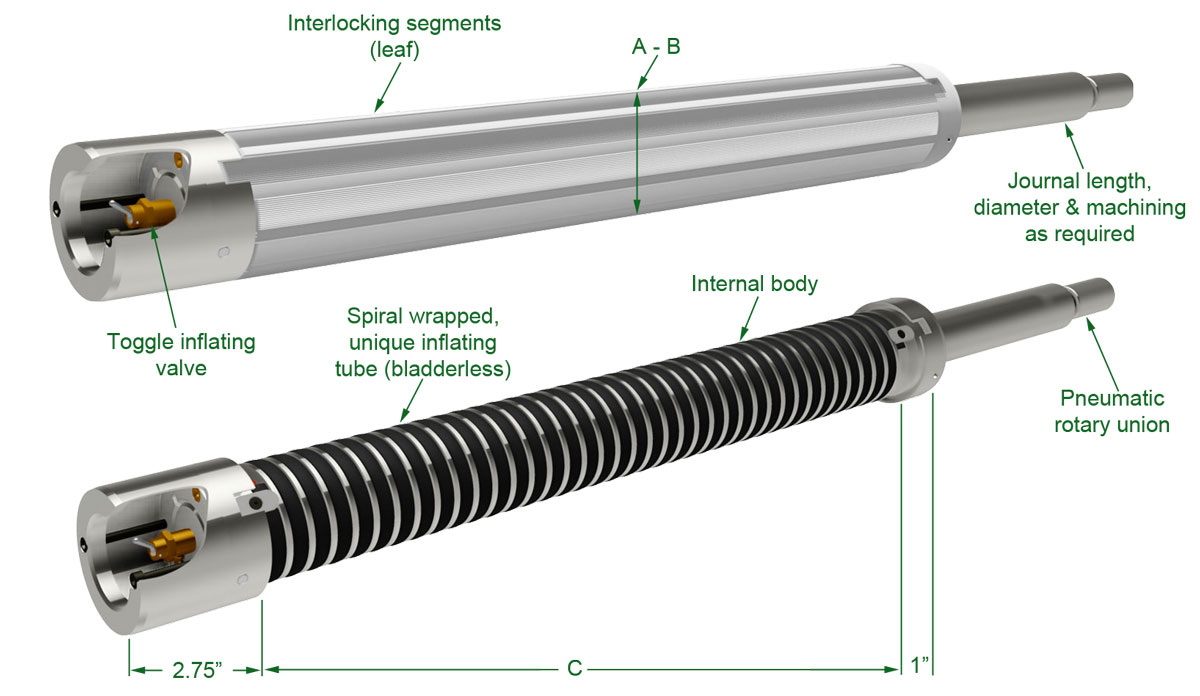

  A B C
Core size
Deflated
diameter
Inflated
diameter
Expanding
length
2 1-31/32 2-3/32 3-40
3 2-15/16 3-1/8 3-48
4 3-15/16 4-3/16 3-60
6 5-15/16 6-3/16 3-60
6 3/4 6-11/16 6-7/8 3-60
7 6-15/16 7-3/16 3-60
8 7-15/16 8-3/16 3-60
9 8-15/16 9-3/16 3-60
10 9-15/16 10-3/16 3-60
11 10-15/16 11-3/16 3-60
12 11-15/16 12-3/16 3-60
Notes:
1) All dimensions in inches.
2) Custom and metric core sizes available, please contact us at
(800) 433-2413 or sales@converteraccessory.com for more information.
Click filename to view Specification Sheets
Filename  Description
18503-34Cantilevered COR-LOK® Air Shaft with Toggle Type Inflating Valve
18503-35Cantilevered COR-LOK® Air Shaft with Toggle Type Inflating Valve & Turned Journal

News article: New On Shaft Inflation Toggle Valve Air Shaft Makes Roll Changes More Efficient


Tech tip: Beam strength may be a key factor when deciding what type of air shaft to use.
