CAC Products >>> Rollers and Roller Assemblies  >>> Idler Rolls

Tech tip: Test Trim Samples to Ensure System Performance


Dead Shaft Idler Rolls

2" Diameter

2.5" Diameter

3" Diameter

3.5" Diameter

4" Diameter

4.5" Diameter

5" Diameter

6" Diameter

8" Diameter



2" Diameter Dead Shaft Idler Roll

Specifications:

  • Diameter
2" Outside diameter (nominal)2
enlarge
  • Available Materials:
.250" Wall aluminum
.250" Wall steel
.250" Wall stainless steel
  • Outside diameter turned and polished
  • Balanced
  • Low Friction Bearings
  • Available coatings:
Rubber
Plasma
Chrome
Anodize
  • Available machining:
Crown
Reverse crown
Drilled and tapped thru shaft ends
Various groove pattern
Knurling

RETURN TO TOP

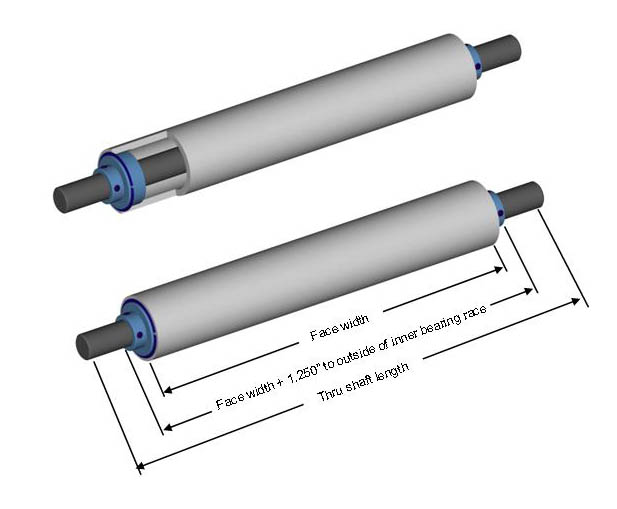

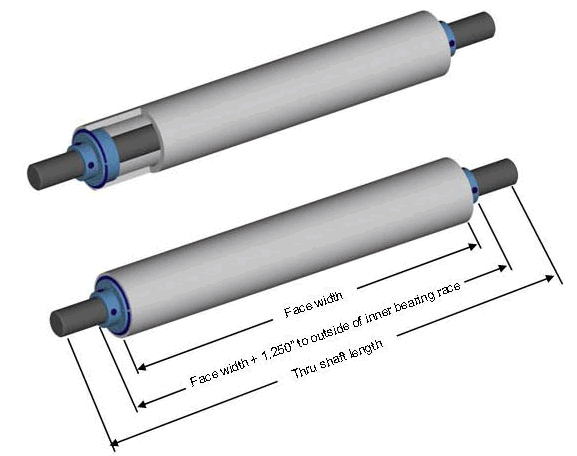

2.5" Diameter Dead Shaft Idler Roll

Specifications:

  • Diameter
2.5" Outside diameter (nominal) 2.5 Diameter Dead Shaft Idler Roll
enlarge
  • Available Materials:
.250" Wall aluminum
.250" Wall steel
.250" Wall stainless steel
  • Outside diameter turned and polished
  • Balanced
  • Low Friction Bearings
  • Available coatings:
Rubber
Plasma
Chrome
Anodize
  • Available machining:
Crown
Reverse crown
Drilled and tapped thru shaft ends
Various groove pattern
Knurling

RETURN TO TOP

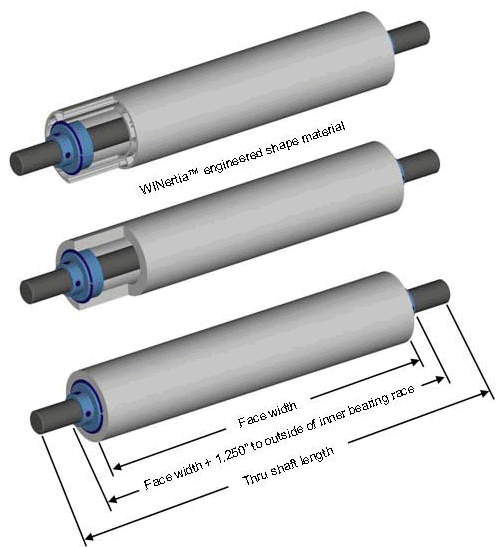

3" Diameter Dead Shaft Idler Roll

Specifications:

  • Diameter
3" Outside diameter (nominal)3 Diameter Dead Shaft Idler Roll
enlarge
  • Available Materials:
.250" Wall aluminum
.187" Wall steel
.187" Wall stainless steel
.500" Hollow wall aluminum
(WINertia™ engineered shape*)
  • Outside diameter turned and polished
  • Balanced
  • Low Friction Bearings
  • Available coatings:
Rubber
Plasma
Chrome
Anodize
  • Available machining:
Crown
Reverse crown
Drilled and tapped thru shaft ends
Various groove pattern
Knurling

RETURN TO TOP

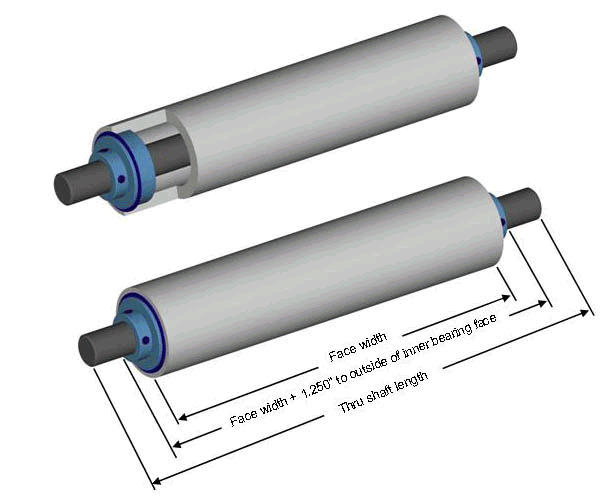

3.5" Diameter Dead Shaft Idler Roll

Specifications:

  • Diameter:
3.5" Outside diameter (nominal)3.5 Diameter Dead Shaft Idler Roll
enlarge
  • Available Materials:
.500" Wall aluminum
.187" Wall steel
.187" Wall stainless steel
  • Thru shaft diameter:
1.5" Stock (not machined)
  • Outside diameter turned and polished
  • Balanced
  • Low Friction Bearings
  • Available coatings:
Rubber
Plasma
Chrome
Anodize
  • Available machining:
Crown
Reverse crown
Drilled and tapped thru shaft ends
Various groove pattern
Knurling

RETURN TO TOP

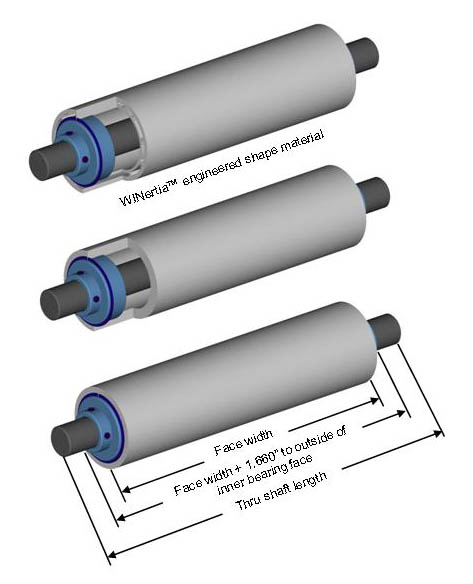

4" Diameter Dead Shaft Idler Roll

Specifications:

  • Diameter:
4" Outside diameter (nominal)4 Diameter Dead Shaft Idler Roll
enlarge
  • Available Materials:
.500" Wall aluminum
.250" Wall steel
.250" Wall stainless steel
.500" Hollow wall aluminum
(WINertia™ engineered shape*)
  • Thru shaft diameter:
1.5" Stock (not machined)
  • Outside diameter turned and polished
  • Balanced
  • Low Friction Bearings
  • Available coatings:
Rubber
Plasma
Chrome
Anodize
  • Available machining:
Crown
Reverse crown
Drilled and tapped thru shaft ends
Various groove pattern
Knurling

RETURN TO TOP

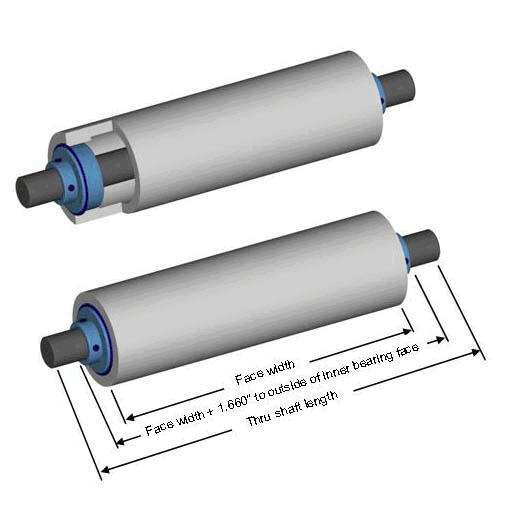

4.5" Diameter Dead Shaft Idler Roll

Specifications:

  • Diameter:
4.5" Outside diameter (nominal)4.5 Diameter Dead Shaft Idler Roll
enlarge
  • Available Materials:
.500" Wall aluminum
.250" Wall steel
.250" Wall stainless steel
  • Thru shaft diameter:
1.5" Stock (not machined)
  • Outside diameter turned and polished
  • Balanced
  • Low Friction Bearings
  • Available coatings:
Rubber
Plasma
Chrome
Anodize
  • Available machining:
Crown
Reverse crown
Drilled and tapped thru shaft ends
Various groove pattern
Knurling

RETURN TO TOP

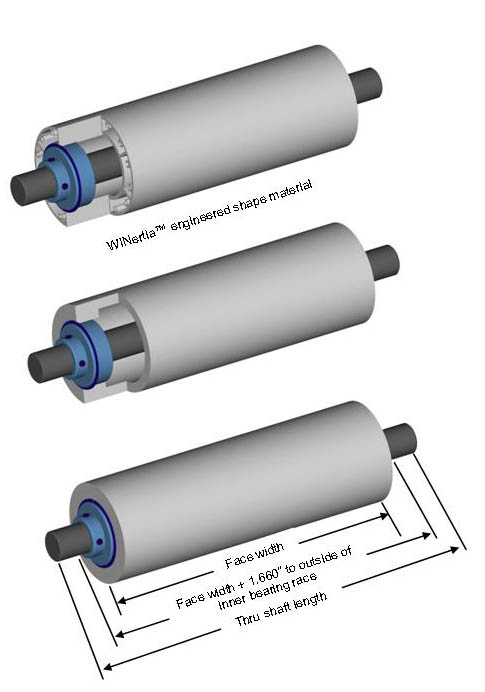

5" Diameter Dead Shaft Idler Roll

Specifications:

  • Diameter:
5" Outside diameter (nominal)5 Diameter Dead Shaft Idler Roll
enlarge
  • Available Materials:
.500" Wall aluminum
.310" Wall steel
.310" Wall stainless steel
1" Hollow wall aluminum
(WINertia™ engineered shape*)
  • Thru shaft diameter:
1.5" Stock (not machined)
  • Outside diameter turned and polished
  • Balanced
  • Low Friction Bearings
  • Available coatings:
Rubber
Plasma
Chrome
Anodize
  • Available machining:
Crown
Reverse crown
Drilled and tapped thru shaft ends
Various groove pattern
Knurling

RETURN TO TOP

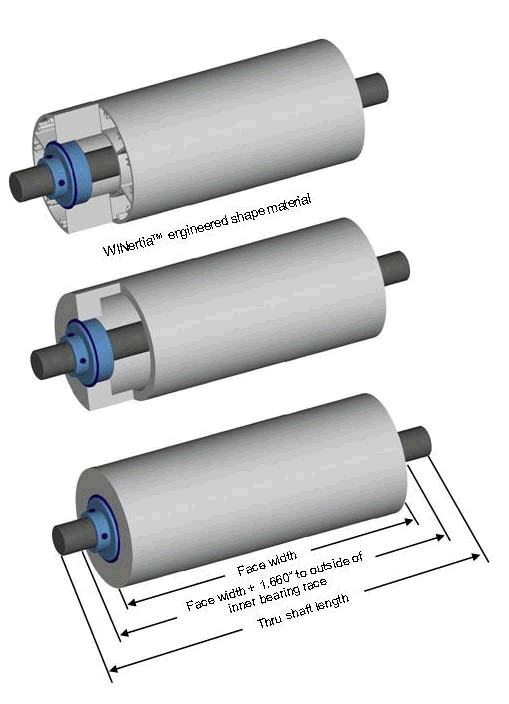

6" Diameter Dead Shaft Idler Roll

Specifications:

  • Diameter:
6" Outside diameter (nominal)6 Diameter Dead Shaft Idler Roll
enlarge
  • Available Materials:
.500" Wall aluminum
.310" Wall steel
.310" Wall stainless steel
1" Hollow wall aluminum
(WINertia™ engineered shape*)
  • Thru shaft diameter:
1.5" Stock (not machined)
  • Outside diameter turned and polished
  • Balanced
  • Low Friction Bearings
  • Available coatings:
Rubber
Plasma
Chrome
Anodize
  • Available machining:
Crown
Reverse crown
Drilled and tapped thru shaft ends
Various groove pattern
Knurling

RETURN TO TOP

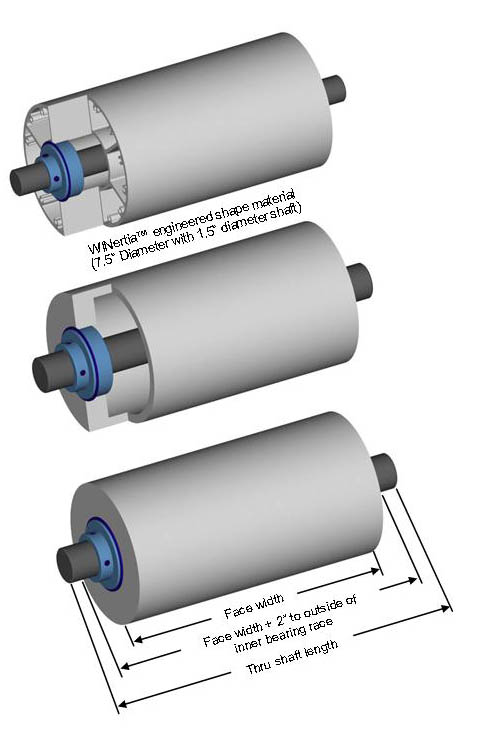

8" Diameter Dead Shaft Idler Roll

Specifications:

  • Diameter:
8" Outside diameter (nominal)
7.5" Outside diameter WINertia™
8 Diameter Dead Shaft Idler Roll
enlarge
  • Available Materials:
.500" Wall aluminum
.5" Wall steel
.5" Wall stainless steel
2.25" Hollow wall aluminum
(WINertia™ engineered shape*)
  • Thru shaft diameter:
2" Stock (not machined)
1.5" Stock (not machined)
with WINertia™ material
  • Outside diameter turned and polished
  • Balanced
  • Low Friction Bearings
  • Available coatings:
Rubber
Plasma
Chrome
Anodize
  • Available machining:
Crown
Reverse crown
Drilled and tapped thru shaft ends
Various groove pattern
Knurling



*WINertia™ engineered shape materials provides 10% - 30% less rotational inertia and momentum. WINertia™ is a registered trademark of Componex Corporation.
