Shaft Holder Module
with Web Guide Modification
SH Edge Guide
SimpLok™ Shaft Holder module with Web Guide Modification



SimpLok™ shaft holder module with web guide modification is an outstanding option when considering addition of web guiding for any unwind or rewind station. These units are designed to accept various web guide actuators. Complete engineered modules are designed to fit your application to allow for easy, fast, plug and play implementation of this upgrade for your converting process.

All CAC Shaft Support Systems are designed to meet the specific needs of the continuous web processing converter. They incorporate anti-friction bearings to assure tension control ... and all steel construction for maximum strength, rigidity and trouble-free service over extended use.

arrow Ideal for all web operations: textiles, plastic, paper, film
arrow Eliminates material waste
arrow Anti-friction heavy duty ball bearings
arrow Accommodates shaft sizes up to 1¼" maximum
arrow Accommodates web widths up to 60"
arrow Air or manual brakes available for smooth tension control
arrow Constructed of structural steel weldments for maximum strength and durability
arrow Minimum maintenance
arrow We can mount any web guide or line guide you specify
arrow Backed by CAC's over 30 years of experience designing and manufacturing
      equipment for the converting industry


Click Here to Request Additional Information

Cantilevered Shaft Holder with Web Guide

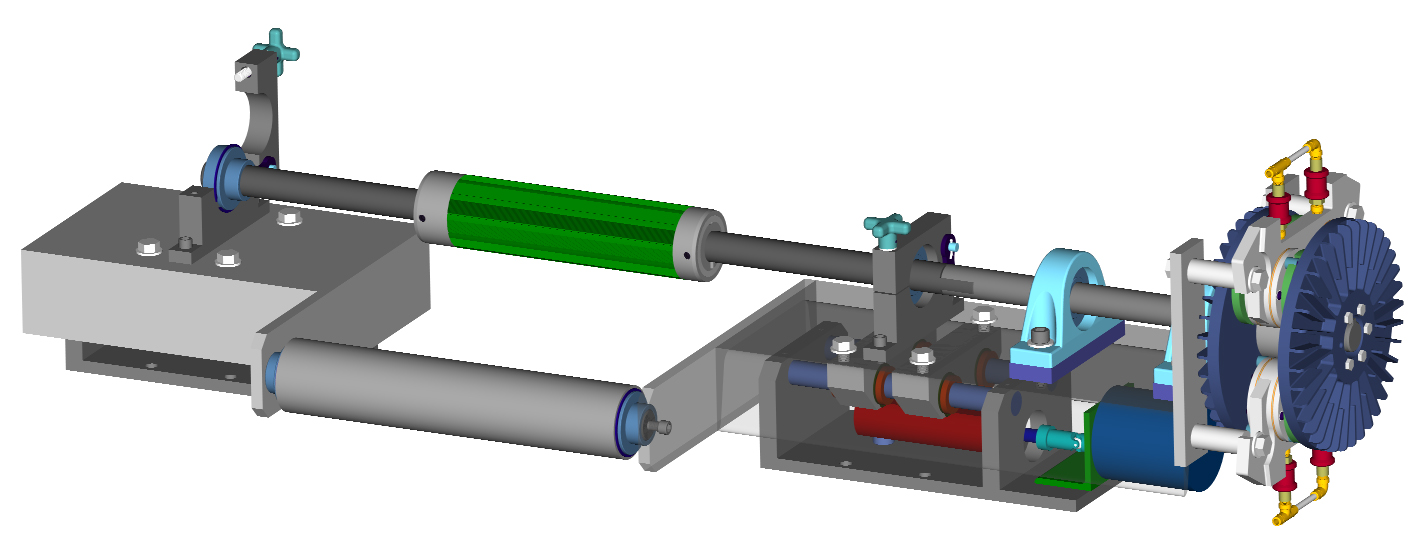

Cantilevered SimpLok™ Shaft Holder module with Web Guide Modification


unwind-station
Unwind Application with SimpLok™ Module

SimpLok™ shaft holder modules are the perfect answer where an unwind or rewind station is required on existing machine framework. These modules work well where easy installation of better braking and tension control systems are desired. Heavy duty steel construction provides for years of reliable operation. Ball bearings are typically supplied to ensure the proper foundation for accurate tension control.

Designs may include CAC's air operated tension brake and CAC's COR-LOK® air shafts for a complete unwind or rewind module solution. These modules may also be supplied with other brakes and / or air shafts at your request.



Click filename to view Specification Sheets
Filename  Description
18503-13 Standard Duty Shaft Holder Assembly with Skew Adjustment
18503-22 Standard Duty Shaft Holder Assembly with Skew and Lateral Adjustment
18503-25 Standard Duty Shaft Holder Assembly with Lateral Adjustment
18503-41 Standard Duty Shaft Holder Assembly with Brake Modification
18503-55 Standard Duty Shaft Holder Assembly with Drive Modification
18503-56 Standard Duty Shaft Holder Assembly w/ Mechanical Tension Brake
