3" Core Cones
3” aluminum core cone 3” aluminum core cone

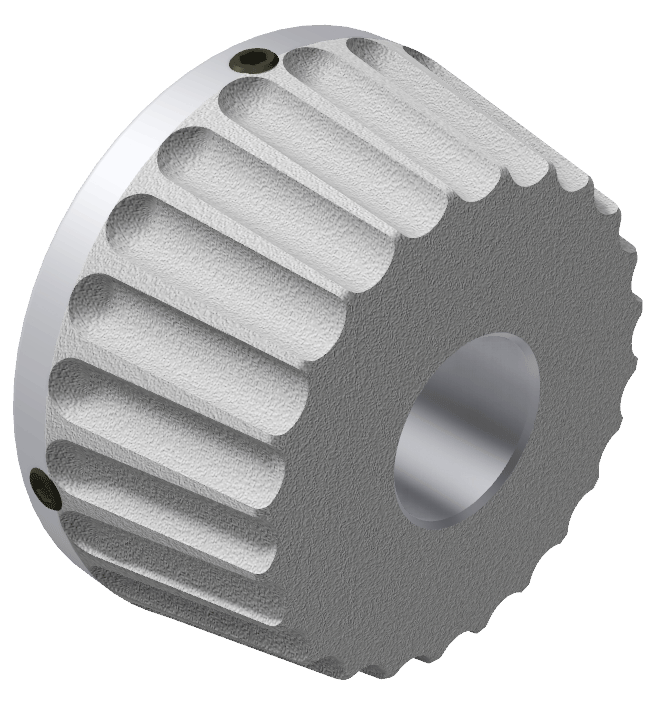

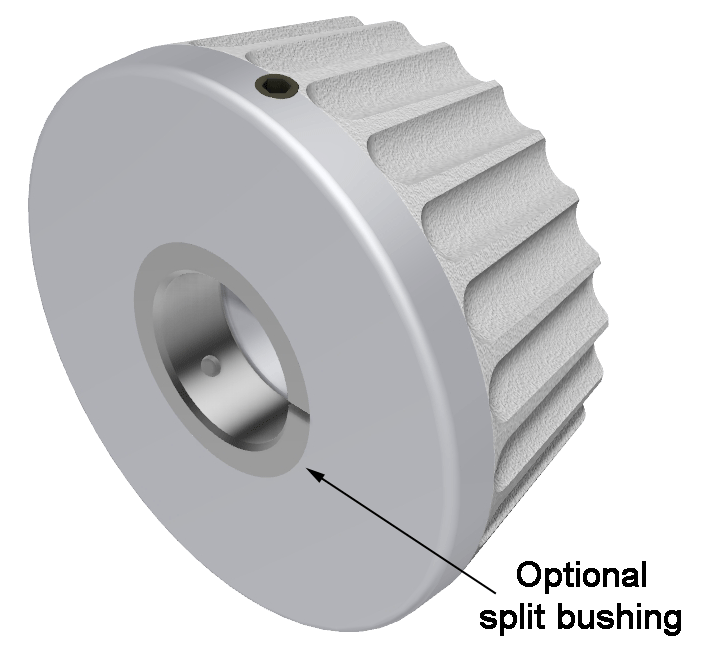

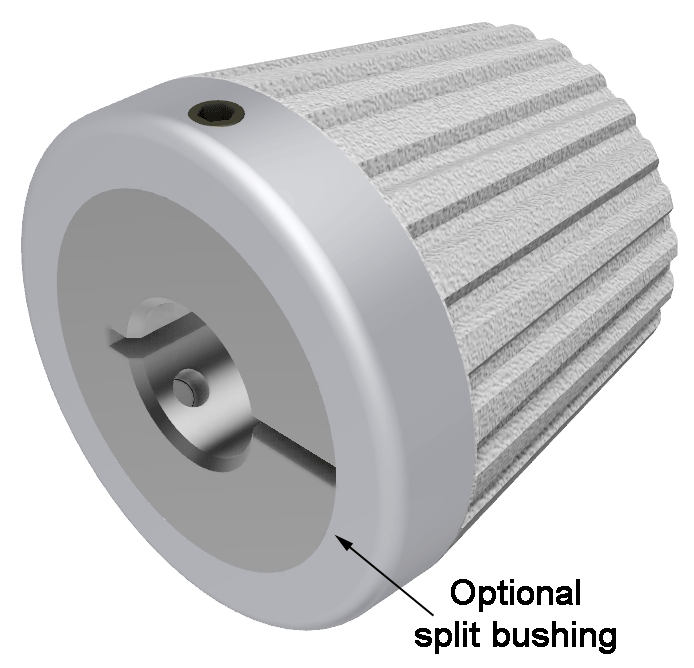

COR-LOK® aluminum core cones are the answer where initial low cost and infrequent roll changes are important. They work extremely well for crushed cores. Core cones are bored to easily slide on your thru shaft. They are cast in aluminum, resulting in rugged cones that take rough usage and are lightweight. The tapered portion has a serrated tooth form for biting into the core I.D. Our core cones are manufactured with two set screws located 90 degrees apart to lock in place anywhere along your thru shaft. Split bushings are optional to allow locking to your thru shaft without the set screws coming in contact with the shaft.

Backed by CAC's 42 years of experience designing and manufacturing Core Cones.


Need more Information?

3” aluminum core cone

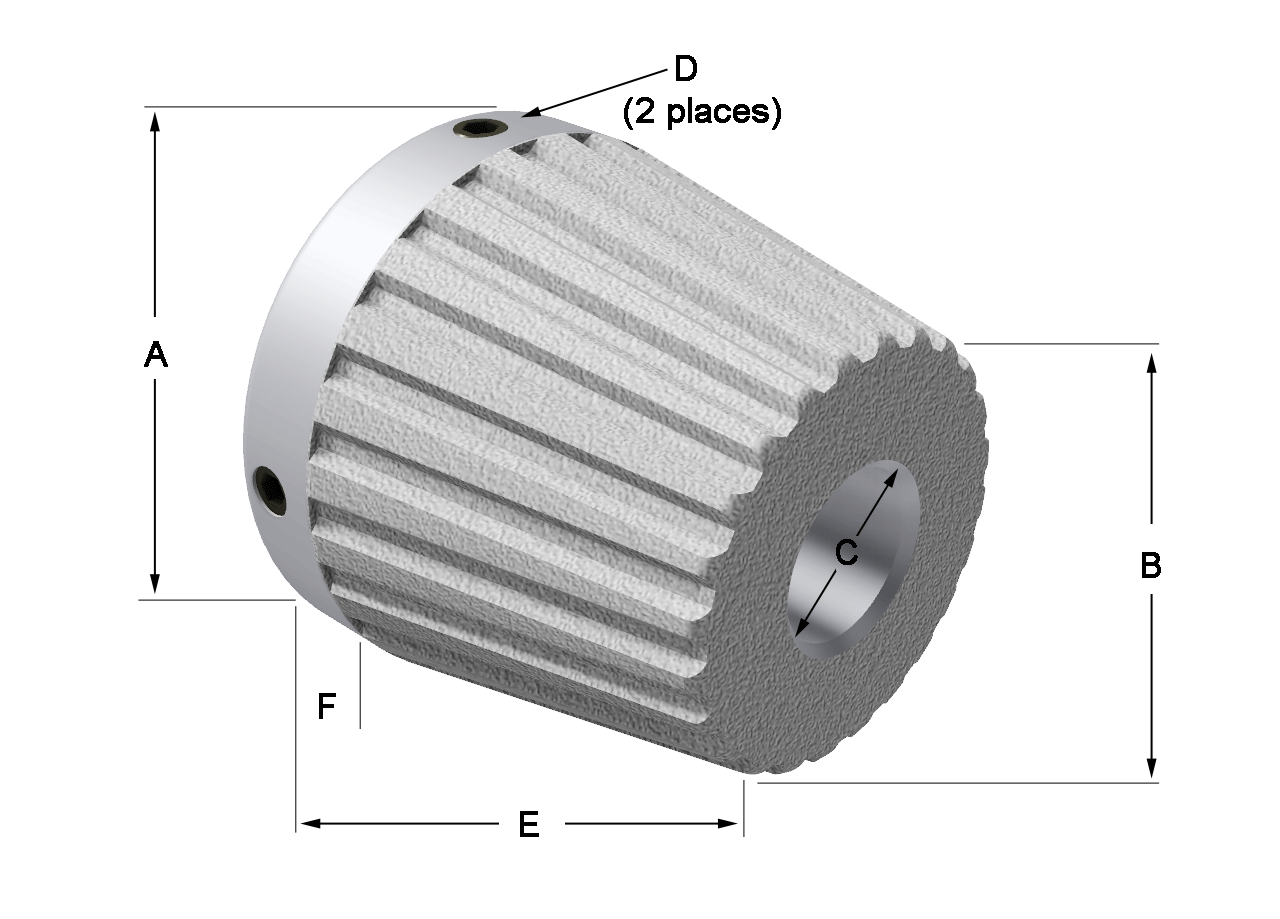

COR-LOK® Aluminum Core Cones dimensions
To fit core size A
Major
diameter
B
Minor
diameter
C
Bore range
D
Set screw
E
Over all length
F
Land
3” 3-3/8” 2-1/2” Up to 2-1/4” 3/8-16 3-1/8” 5/8”
6” 6-3/8” 5-1/2” Up to 5-1/4” 1/2-13 3-1/8” 5/8”
NOTE: Thru bores machined .010” - .015” oversized unless otherwise specified.


6" Core Cones

3” aluminum core cone 6” aluminum core cone 6” aluminum core cone


Click filename to view Specification Sheets
Filename  Description
18503-94 Aluminum Cones
