FOX Runner™ Portable Edge Trim Removal Systems

FOX Runner™ complete, portable edge trim removal system from CAC®


Efficient Trim Removal Improves Sustainability


Ready to run in 15 minutes - roll in place & hook up power!


The FOX Runner™ utilizes FOX TrimAway®, division of CAC® components mounted to a unique, portable stand. Use them for permanent, semi permanent and temporary applications, anywhere in your plant.

  • Easy to install and operate
  • FOX TrimAway® exclusive venturi design, model FX1, FX2, or FX3
  • Regenerative blower - is virtually maintenance free and super quiet without silencers
  • Silencers are available to deaden noise levels if necessary
  • All blower hardware
  • High quality blower motor starter (200V, 230V and 460V available) with suitable AC plug and 10’ cord
  • Energy efficient
  • Blower filter
  • Pick-up nozzle(s)
  • Y connector
  • All necessary intake duct lengths (10’ standard)
  • All necessary discharge duct lengths (10’ standard)
  • All necessary high torque duct clamps
  • Complete, welded, tubular steel, system mounting frame on swivel locking casters
  • Systems available to handle up to (2) 6” wide trims, up to 6,000 FPM
  • Systems available to discharge over 100’
  • Great for picking up and removing pieces (die cutter) too!
  • Mounted on a single stand, portable and easy to move
  • Suited for permanent, semi-permanent, and temporary applications
Efficiently remove paper, film, foil, textile and non-woven trims. Great for picking up and removing pieces (die cutter) as well as chopped, granulated and palletized materials.

All Fox systems are designed to be exceptionally easy to install and easy to operate. They are quiet, frugal consumers of electricity, especially when compared to systems that rely on energy gobbling compressed air. All Fox systems feature modular constructions sized to customer production requirements. Our Fox technology is available in over 30 standard systems.

Optional Components include:

  • Blower silencers to deaden noise levels where necessary
  • Silencer mounting assembly
  • PTFE lining for systems conveying “sticky” materials
  • Discharge duct over 100’
  • Collection units - nylon collection bags or 80 cubic foot capacity expanded metal collection bin
Complete systems including all of these components, ready to run in 15 minutes – just roll in place and hook up power
Call 800-433-2413 for pricing!

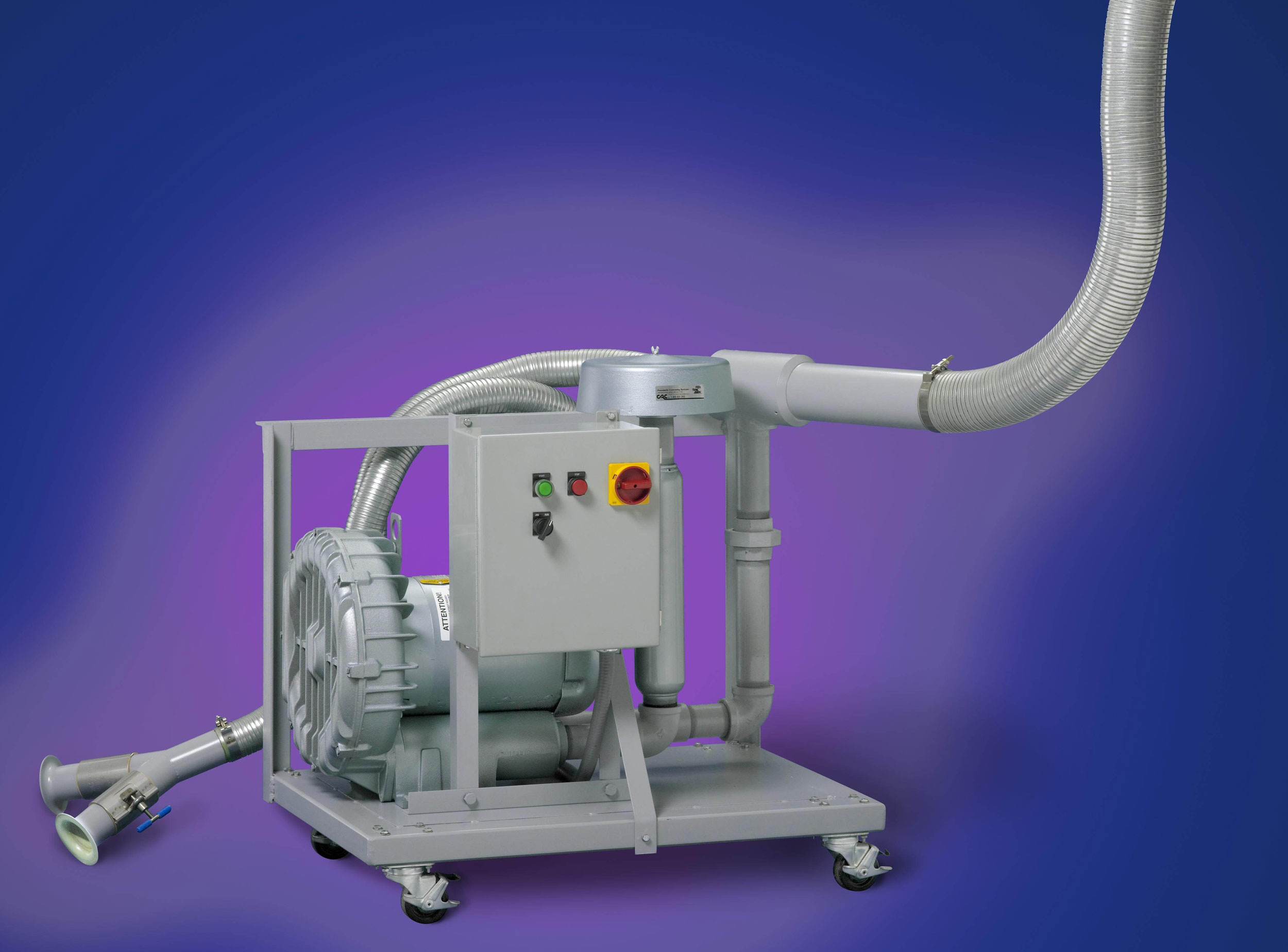

FOX Runner™
FOX Runner 3D

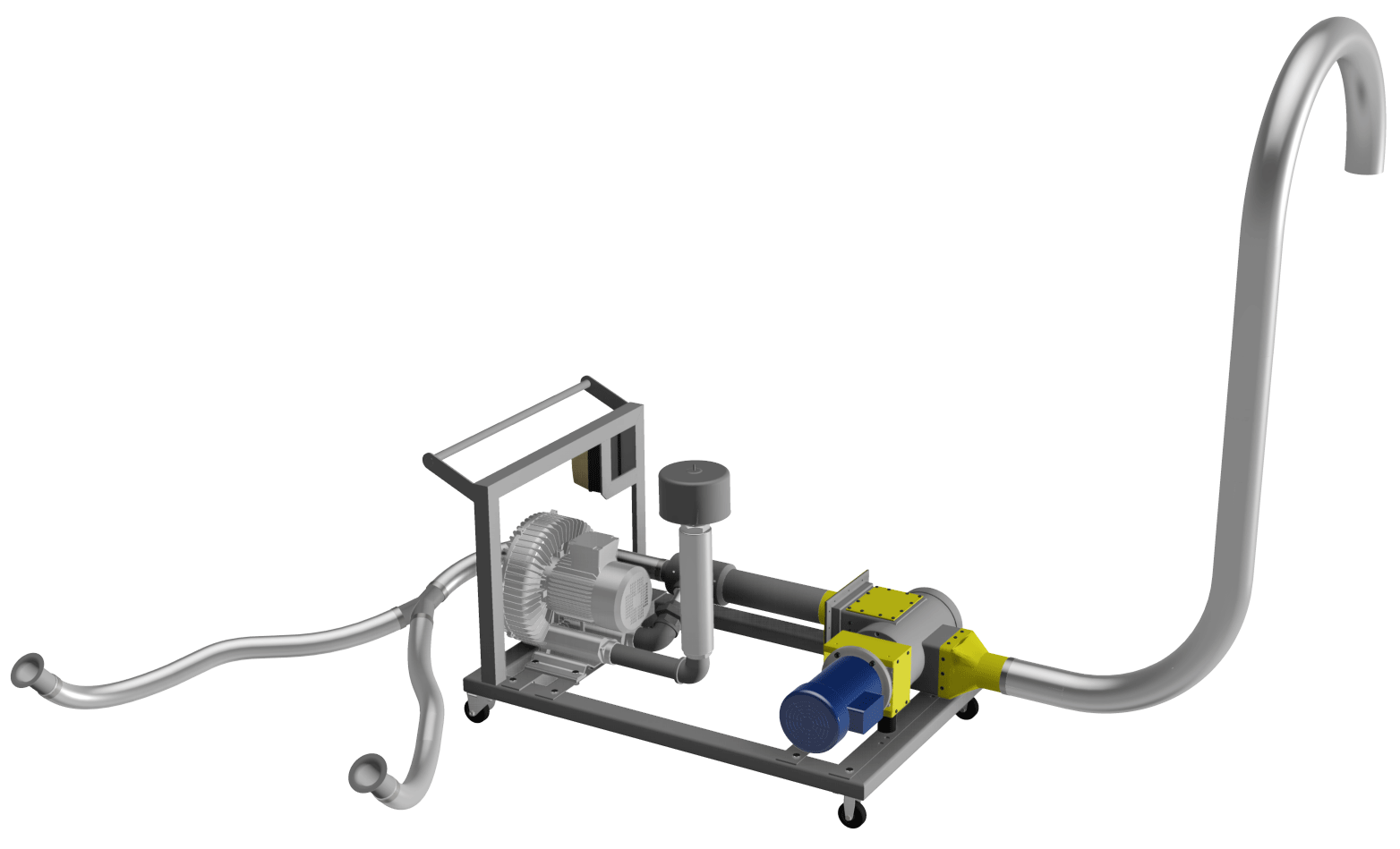

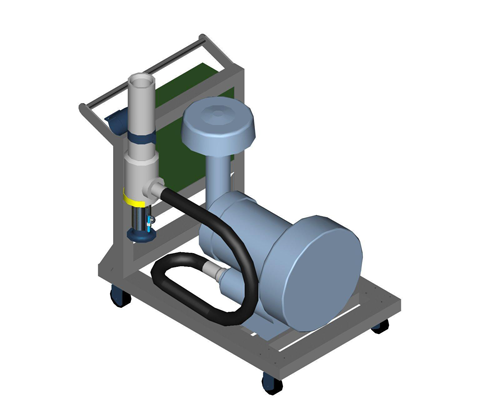

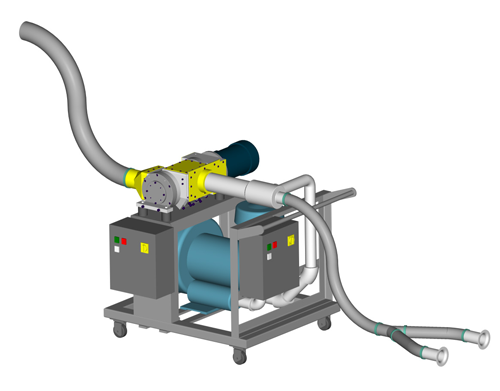

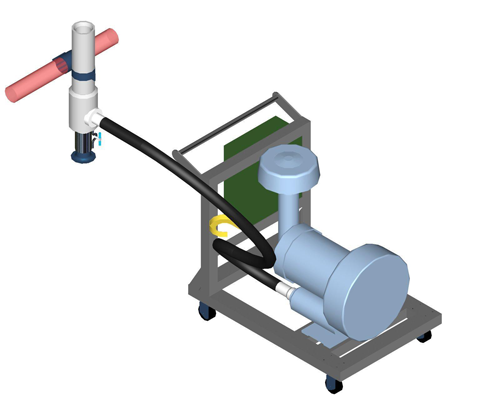

3D View of the FOX Runner		 FOX Runner Component Key
Component Key

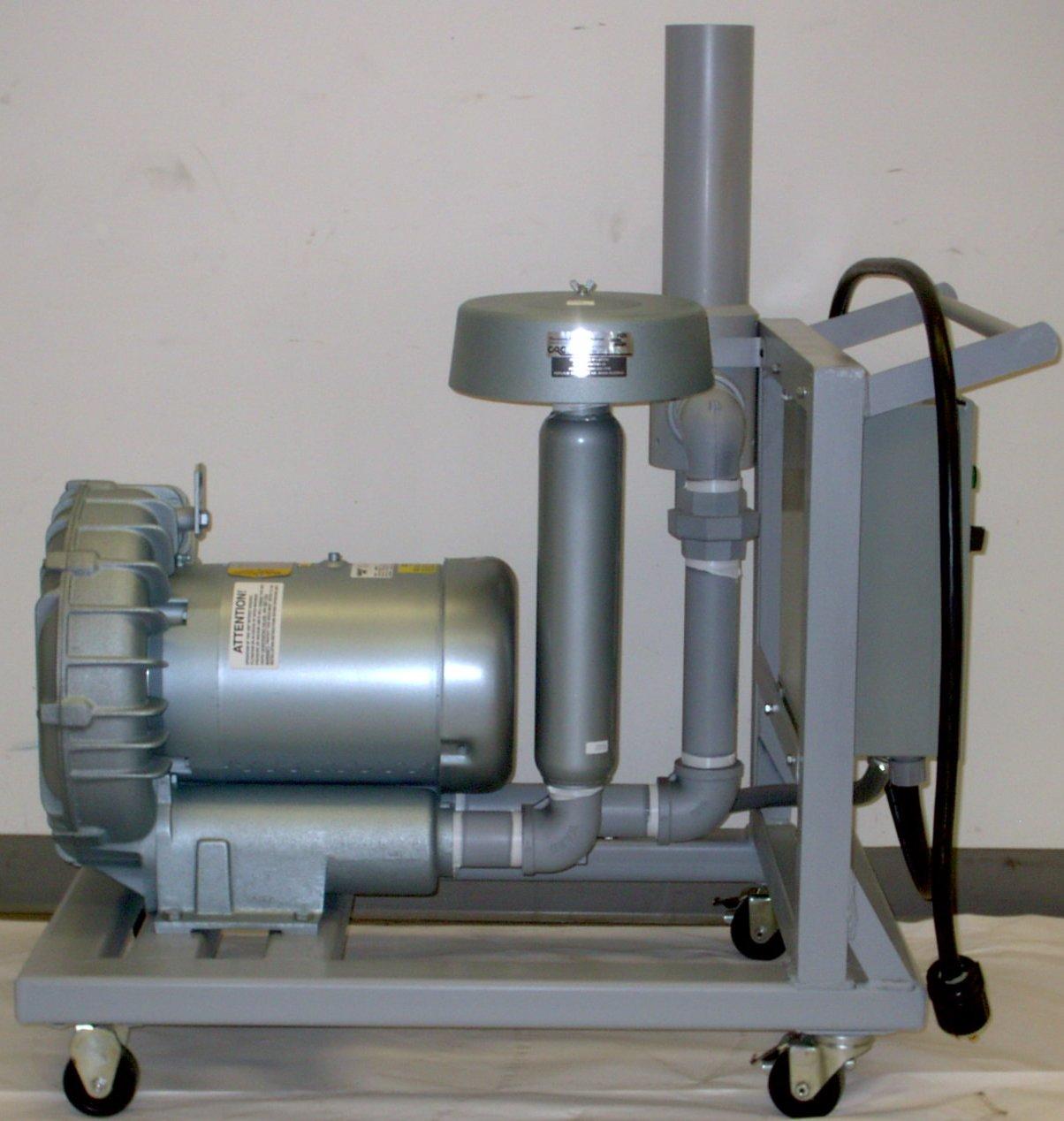

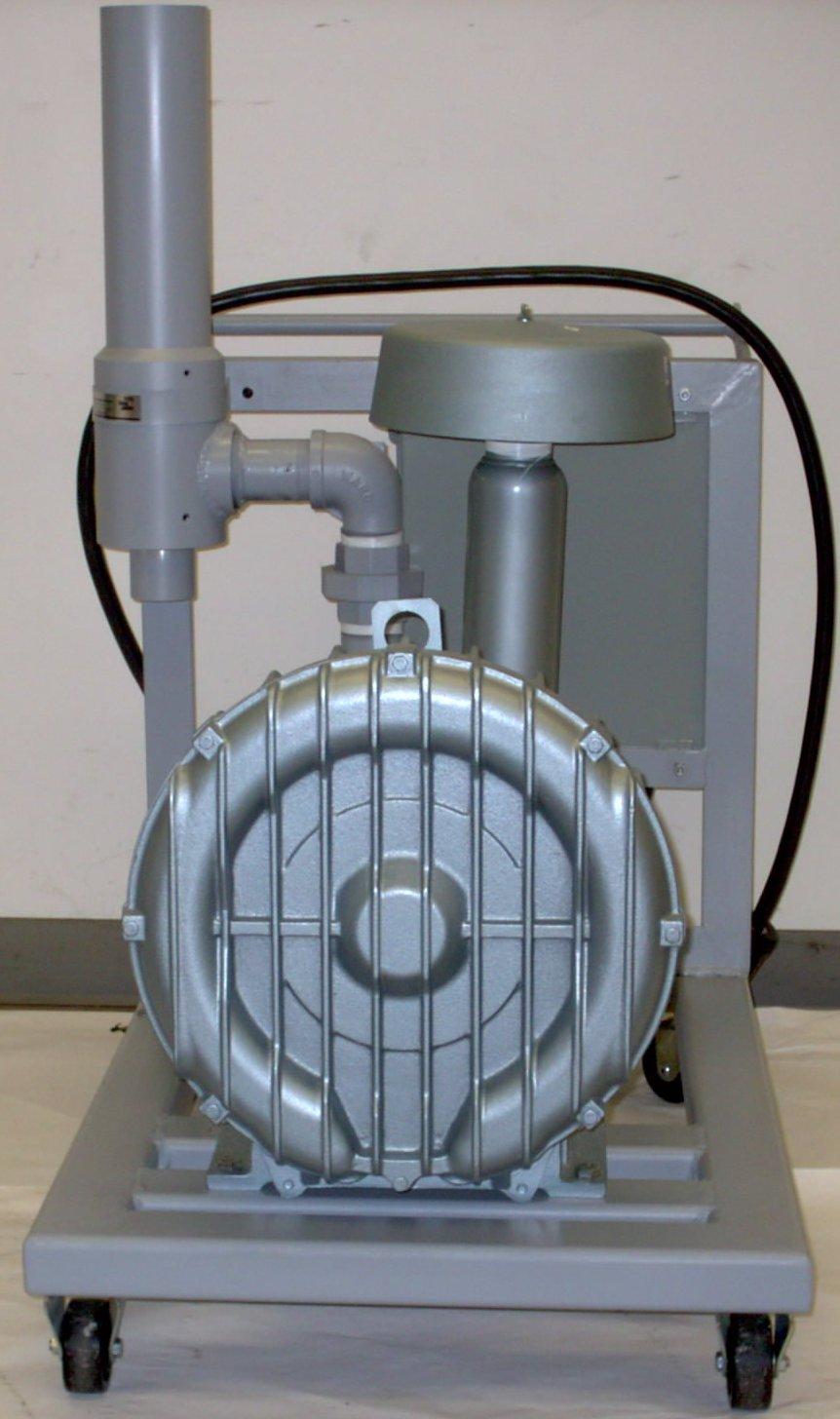

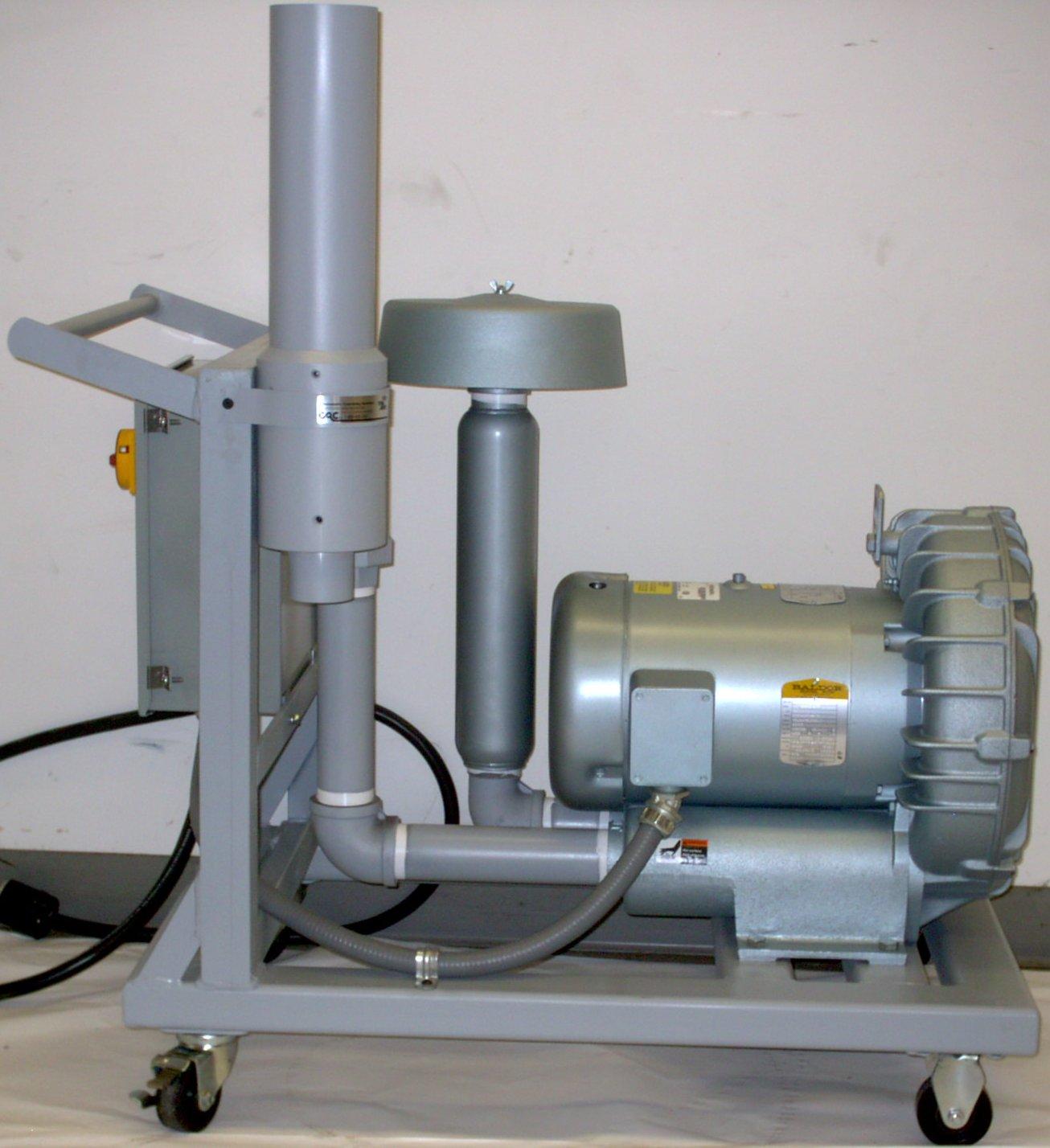

Fox Runner    Fox Runner     Fox Runner
Click on pictures for a larger view
