Fox Runner Systems

Made in the USA

Fox TrimAway Two Pick Up System

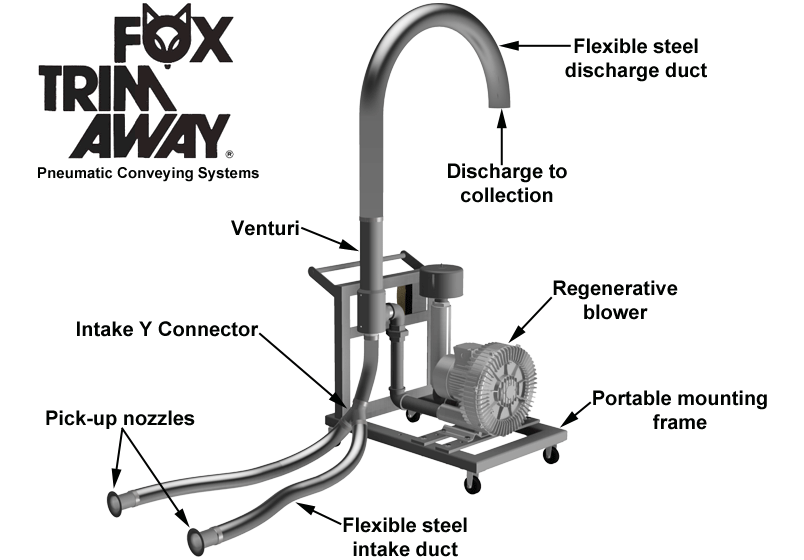

Two Pick-Up FOX Runner™ Portable System

Ready to run in 15 minutes - roll in place and hook up power!




FOX Runner™ utilizes CAC's standard FOX TrimAway® pneumatic waste removal systems. These portable systems are shipped completely assembled and ready to use. As with all FOX TrimAway systems, FOX Runner has a unique venturi at its' heart. Teamed with a powerful, efficient and quiet regenerative blower, FOX Runner is able to generate suction and pressure air streams to pick up and convey your edge trim, die cut pieces or matrix from your machine.

  • Turn key for fast and easy installation and operation
  • Portable for operation at different stations
  • FOX Trimaway® exclusive venturi design, model FX2 or FX3
  • Regenerative blower is energy efficient, quiet and low maintenance
  • Silencers are available to deaden noise levels if necessary
  • All blower hardware
  • High quality blower motor starter (200V, 230V and 460V available)
  • Energy efficient
  • Blower filter
  • Pick-up nozzle(s)
  • Y Connector
  • All necessary intake duct lengths (10' standard)
  • All necessary discharge duct lengths (10' standard)
  • All necessary high torque duct clamps
  • Complete, welded tubular steel mounting frame on durable swivel locking castors
  • Systems available to handle up to two 6" wide trims, up to 6,000 FPM
  • Systems available to discharge over 100'
  • Great for picking up and removing pieces (die cutter) too!
  • Mounted on a single stand, portable and easy to move
  • Suited for permanent, semi-permanent and temporary applications

Efficiently remove paper, film, foil, textile and non-woven trims. Great for picking up and removing pieces (die cutter) as well as chopped, granulated and palletized materials.

All FOX systems are designed to be exceptionally easy to install and easy to operate. They are quiet, thrifty consumers of electricity, especially when compared to systems that rely on energy gobbling compressed air. All FOX systems feature modular constructions sized to customer production requirements. Our FOX technology is available in over 30 standard systems.

Optional Components available:

  • Blower silencers to deaden noise levels where necessary
  • Silencer mounting assembly
  • PTFE lining for systems conveying “sticky” materials
  • Discharge duct over 100’
  • Collection units - nylon collection bags or 80 cubic foot capacity expanded metal collection bin

Call 800-433-2413 for pricing!
Click filename to view specification sheets
Filename   Description
18503-211 FOX Runner Two Pick-Up Portable Trim Removal System
Tech tip: Lateral adjustment at an unwind station can be very helpful.
